Insight Cash — Session Statistics

Section 1 · A major focus of the past several weeks

Development methodology — CCT-AIDLC

A custom AI-Driven Development Lifecycle tailored to CCT's WinForms-to-SPA migration. Intent-driven, plan-first, user-story-led, AI-drafted and human-validated. One method, every migration.

Workflow at a glance

Phase 1 · Inception 1Scaffold → 2Sources → 3Plan → 4Stories → 5Prototype → Inception Gate

Approved intent

Phase 2 · Construction 6Domain 7ADRs 8Design 9Tests parallel → 10Bolts → 11Code → 12Doc sync → Design Gate

Skill catalog — operationalized as Claude Code slash commands

Skills are reusable Claude Code slash commands that package each workflow step as a self-contained procedure — prompt, inputs, expected artifacts, and gate behavior. Encoding the method as skills means any teammate (or agent) can run a migration step with one command and produce the same artifacts in the same place every time.

Step skills

/cct-intent /cct-intent-update /cct-plan /cct-stories /cct-prototype /cct-domain /cct-adrs /cct-design /cct-tests /cct-bolts /cct-code-bolt /cct-doc-sync

Branching utilities

/cct-pr-inception /cct-pr-construction /cct-chore /cct-release /cct-rebase-intent /cct-commit

Workspace + repo utilities

/cct-backlog /change-summary /test-summary

Why it matters

Predictable delivery

Every intent passes through the same gates, produces the same artifacts, and is reviewed by the same roles.

Parallel work

Construction's domain, ADRs, design, and tests run concurrently. Bolts run sequentially with explicit dependency tracking.

Human-validated AI

AI drafts every artifact; humans approve at two explicit gates — End-of-Inception and End-of-design.

Scales with the program

One method, every migration. No per-tool bespoke planning, no rediscovery of the workflow each time.

Section 2

Tools, reports & shared components

What we've built and deployed so far. Tabs below switch between the five categories.

Full-stack tools with their own API and SPA module. Operators use these to drive day-of business.

tool

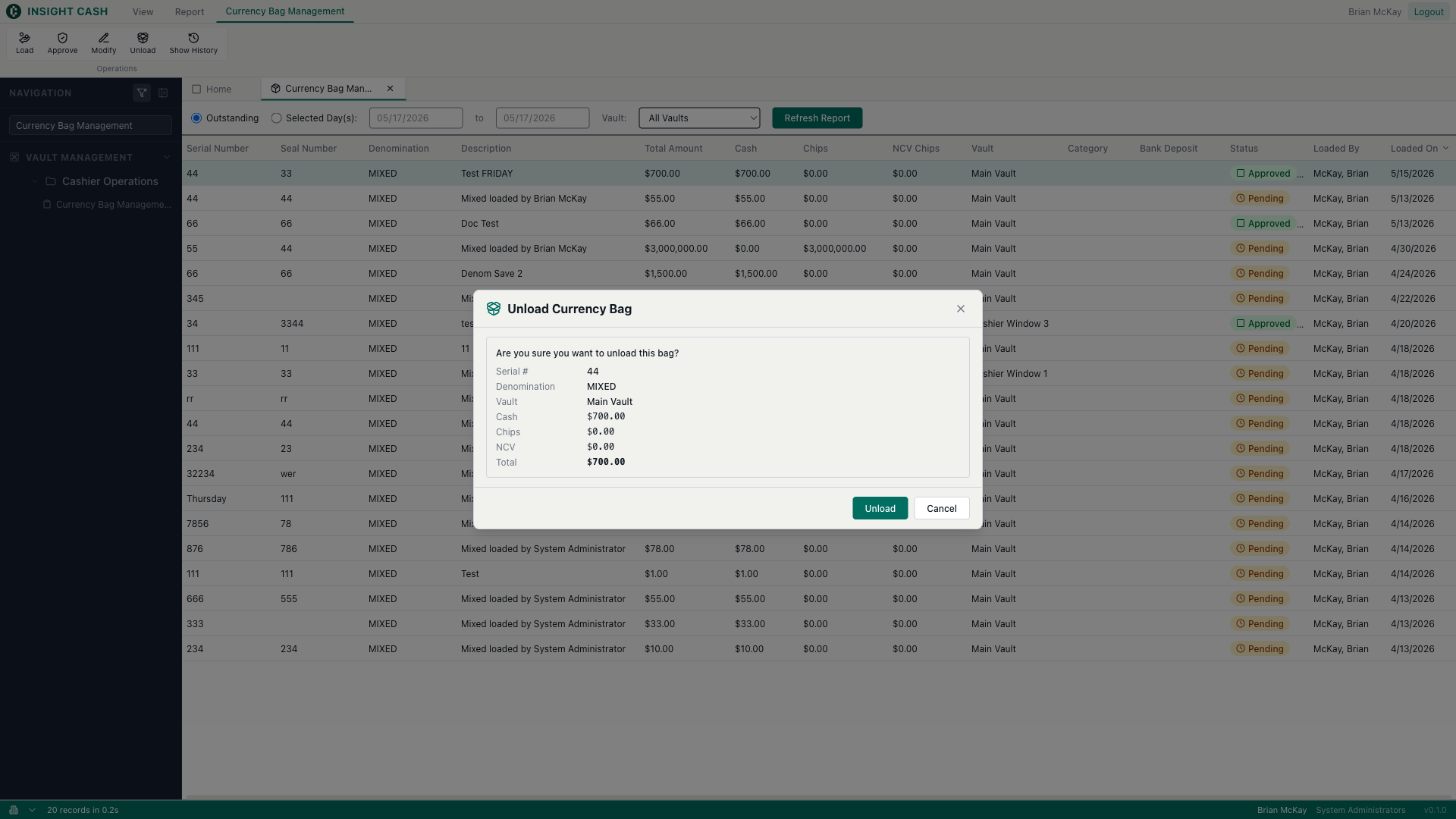

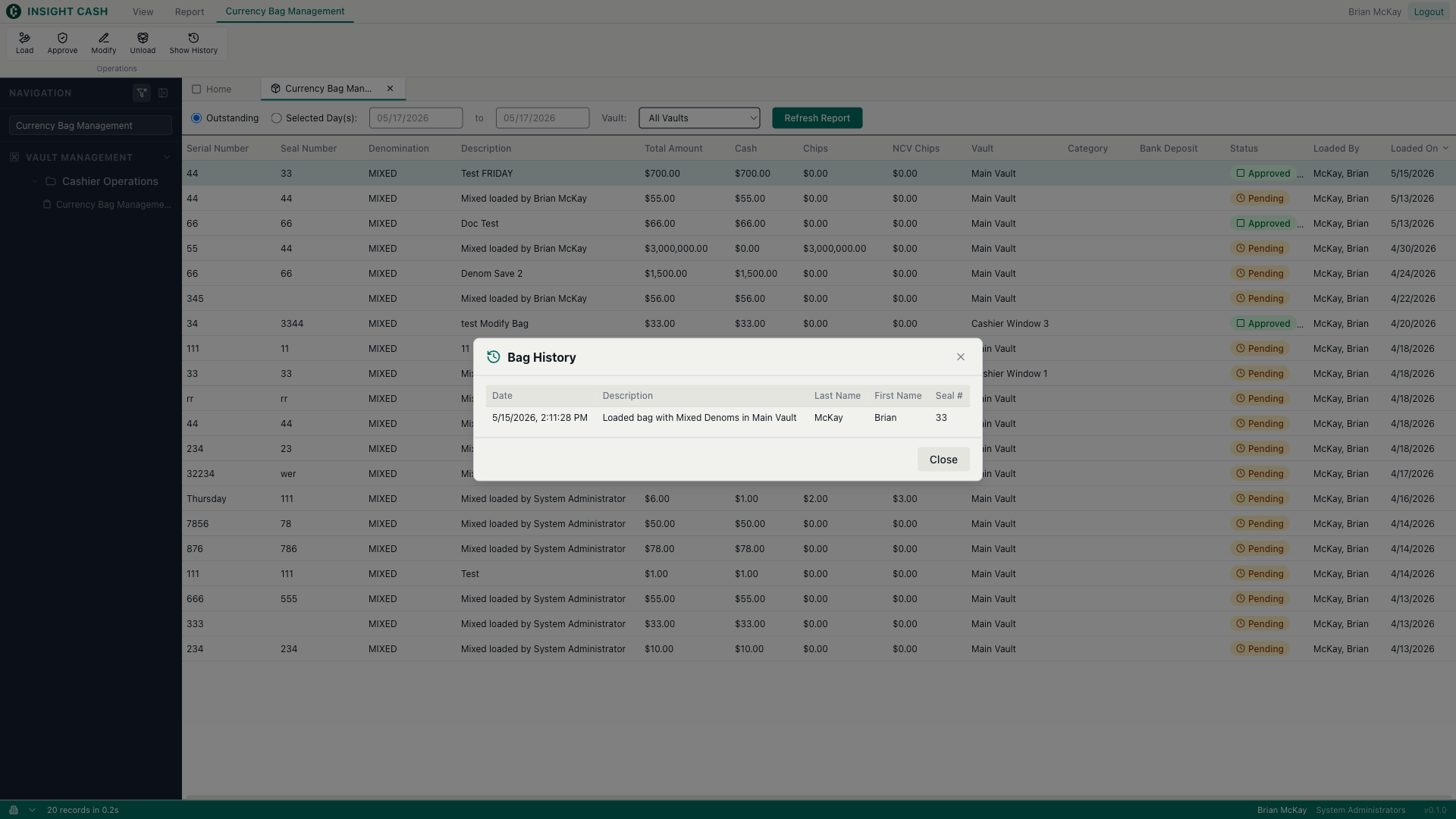

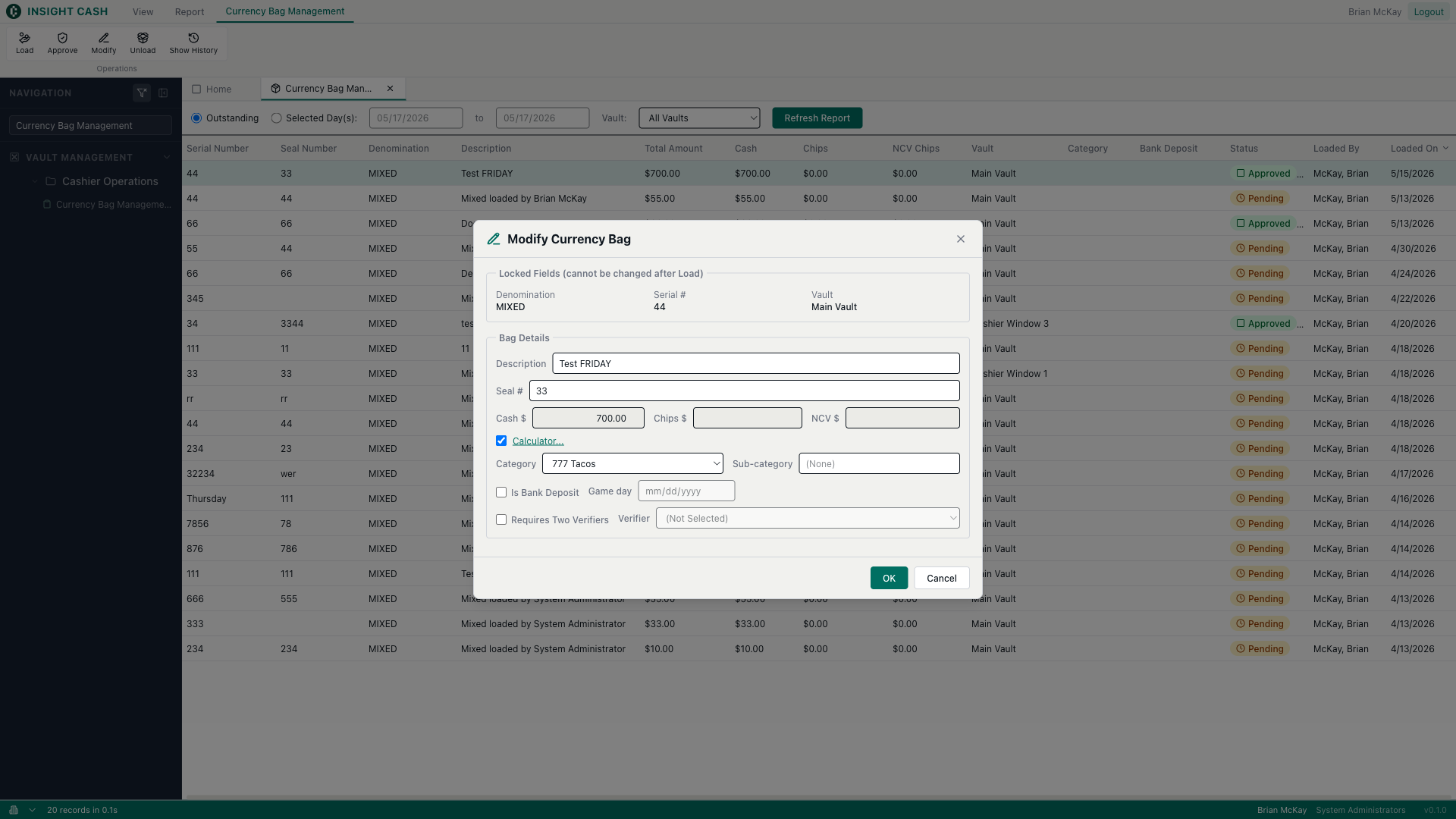

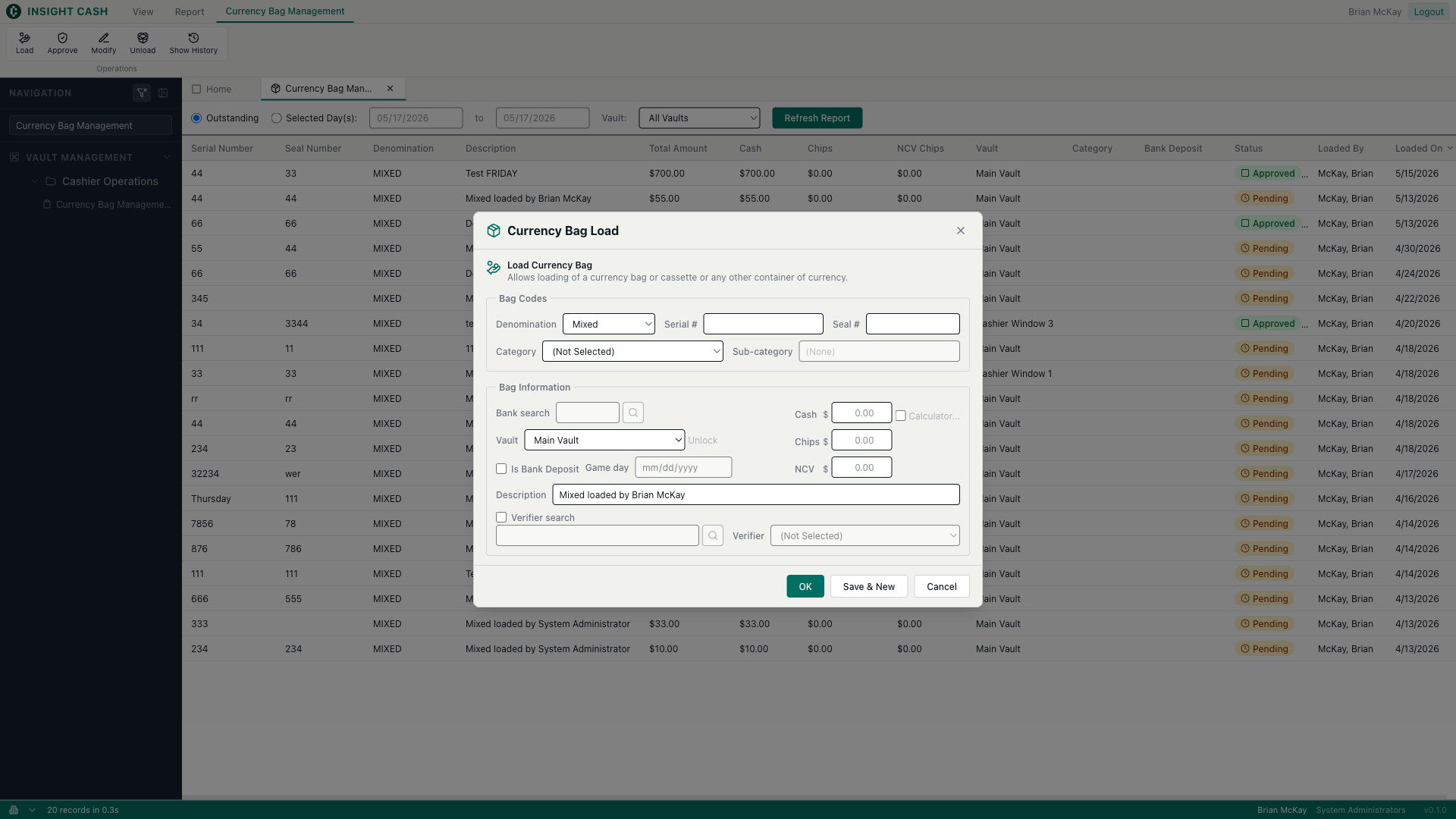

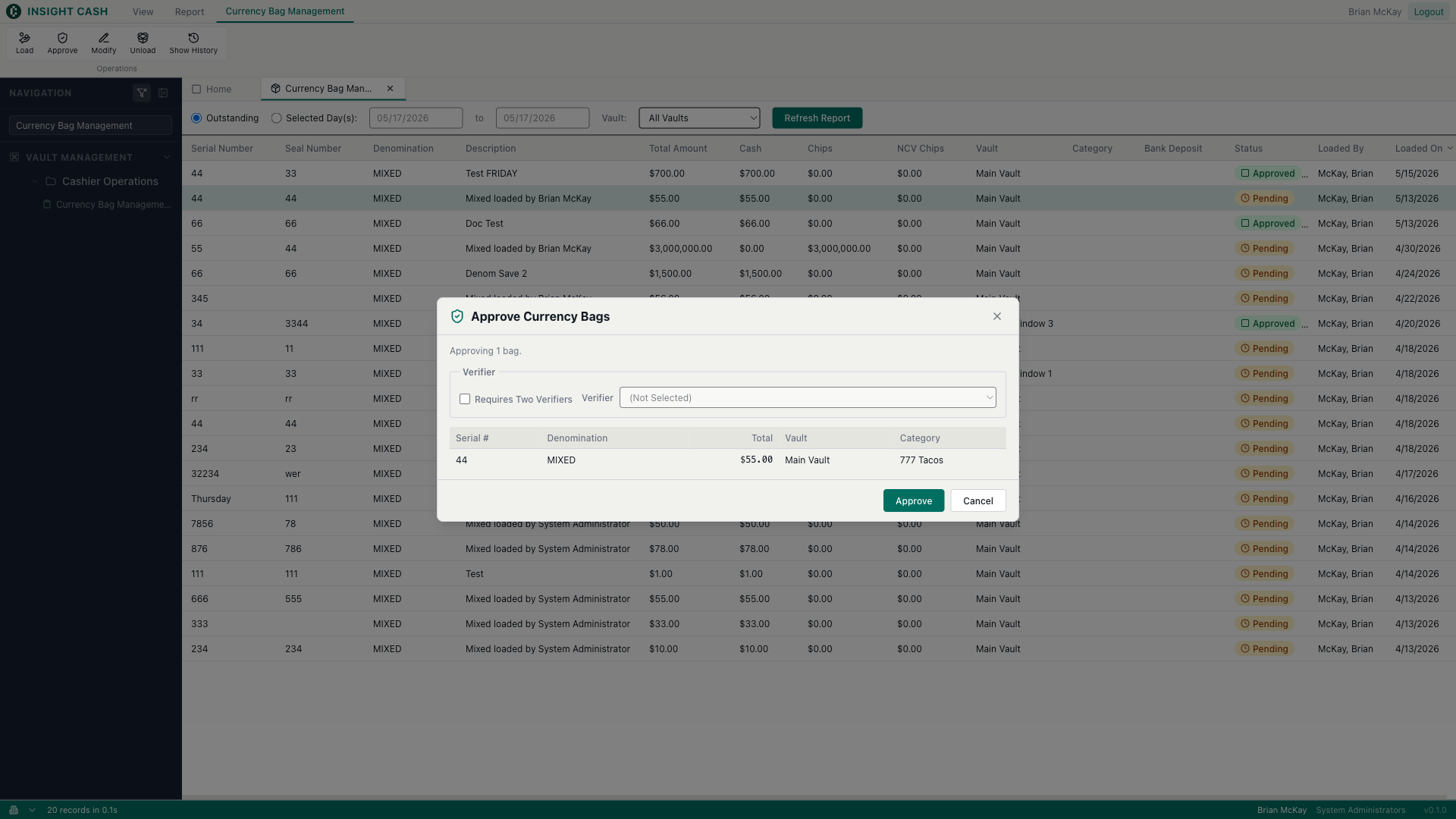

Currency Bag Management

Vault Management → Cashier Operations. Load / Modify / Approve / Unload lifecycle.

↺ Click to view 6 screenshots

Main view1 / 6 ESC or click backdrop to close

tool

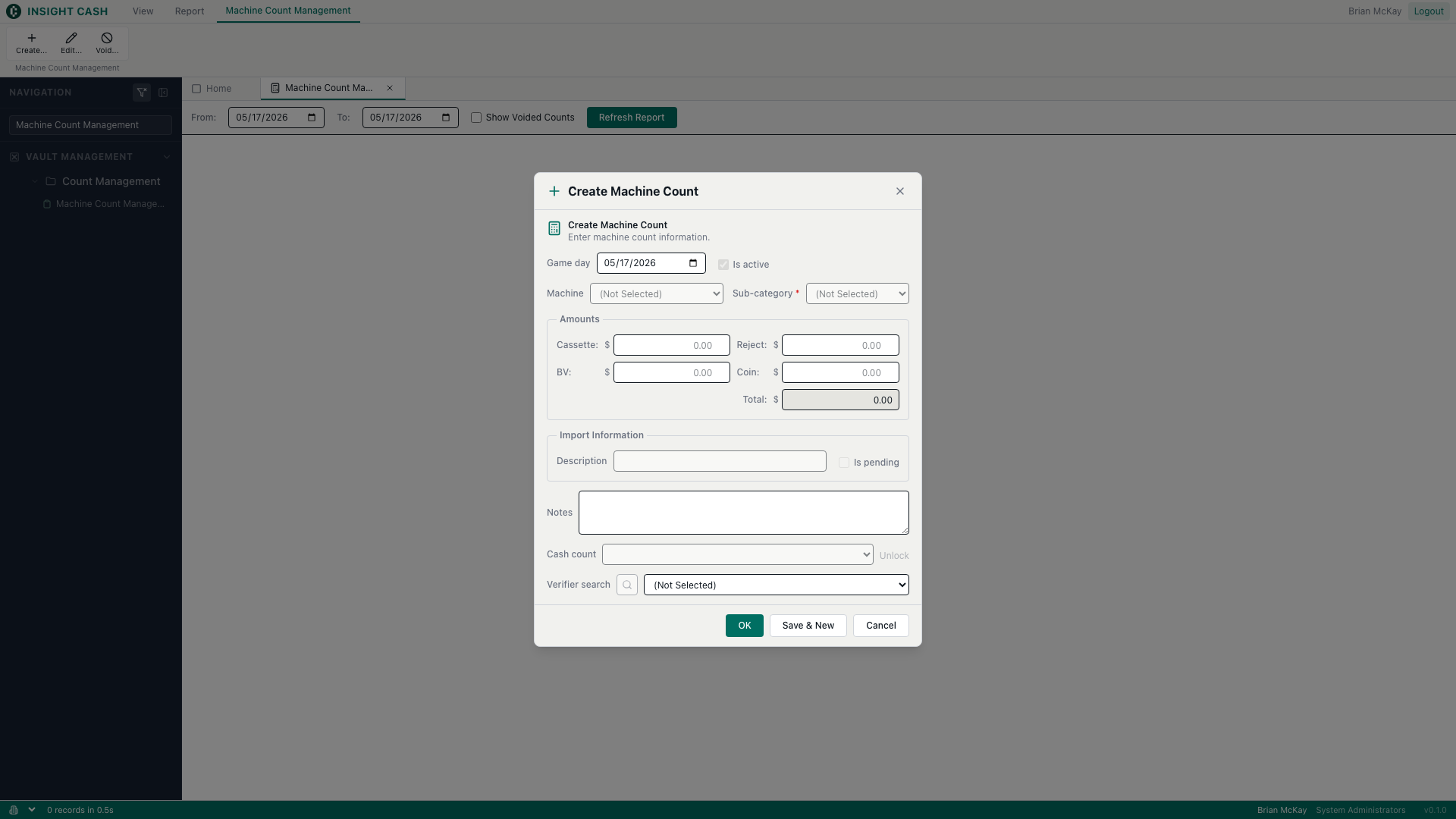

Machine Count Management

Vault Management → Count Management. Slot-machine count Create / Edit / Void.

↺ Click to view 2 screenshots

Main view1 / 2 ESC or click backdrop to close

tool

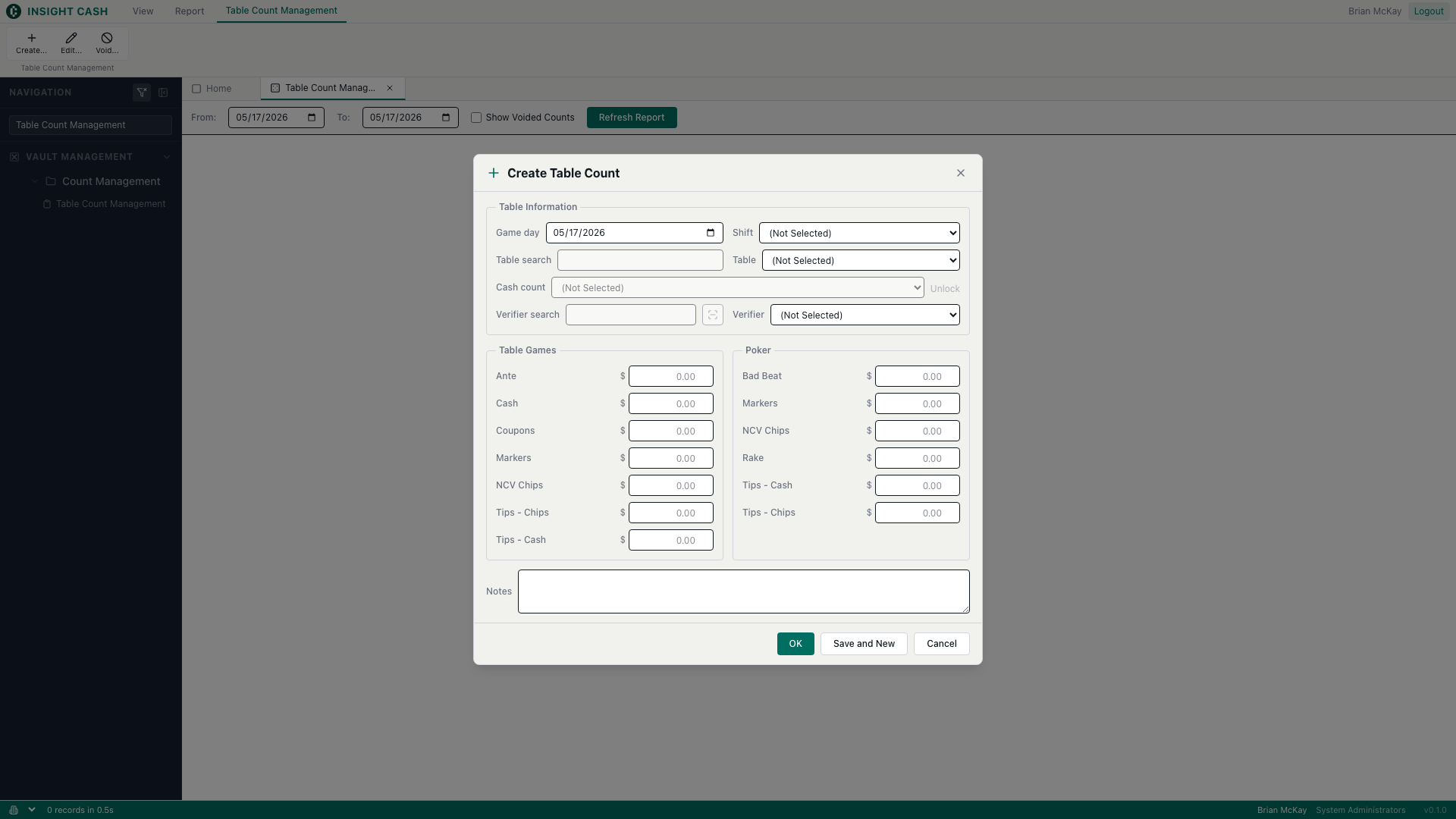

Table Count Management

Vault Management → Count Management. Table-game count Create / Edit / Void.

↺ Click to view 2 screenshots

Main view1 / 2 ESC or click backdrop to close

tool

Home

Dashboard landing page.

tool

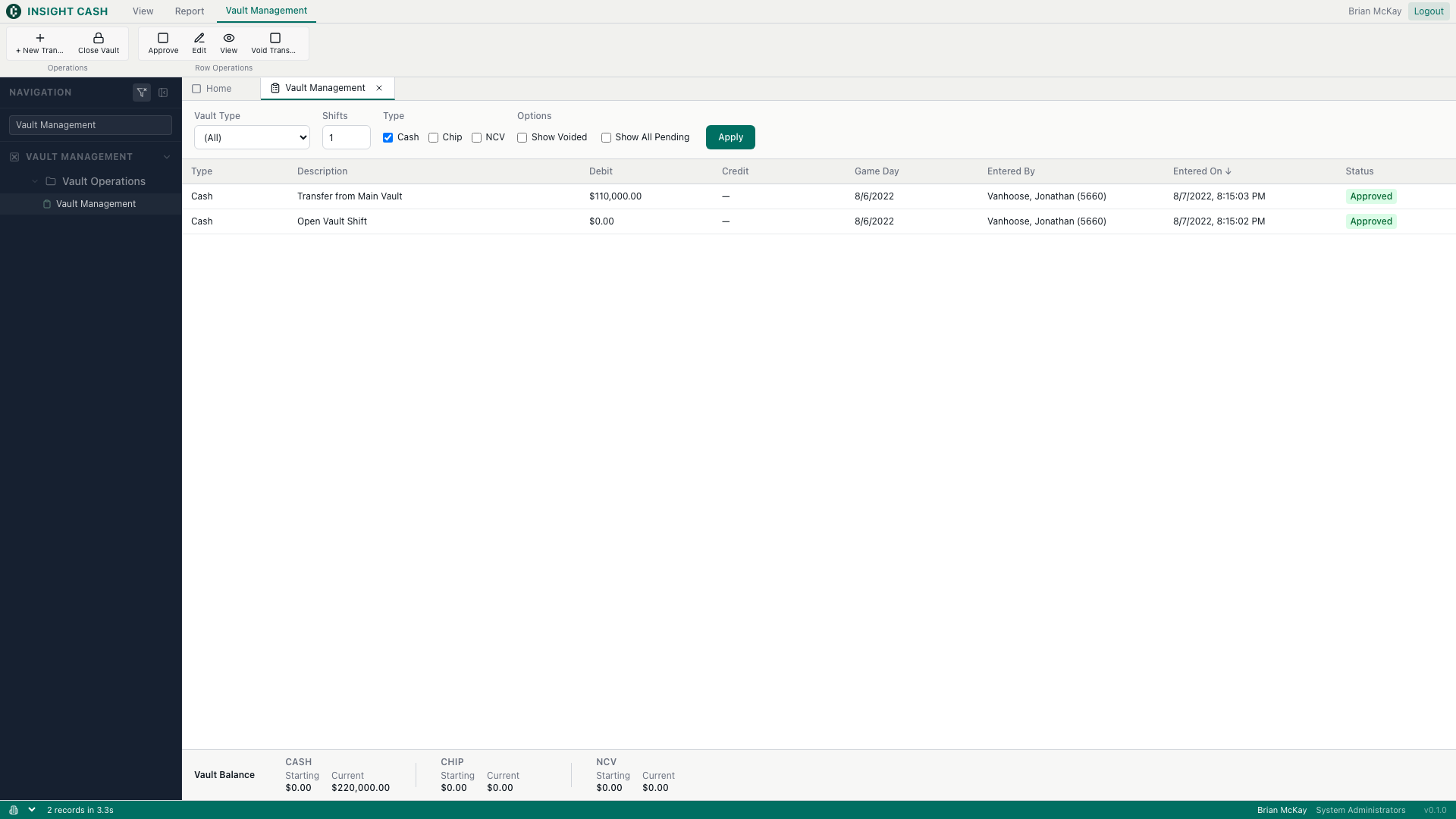

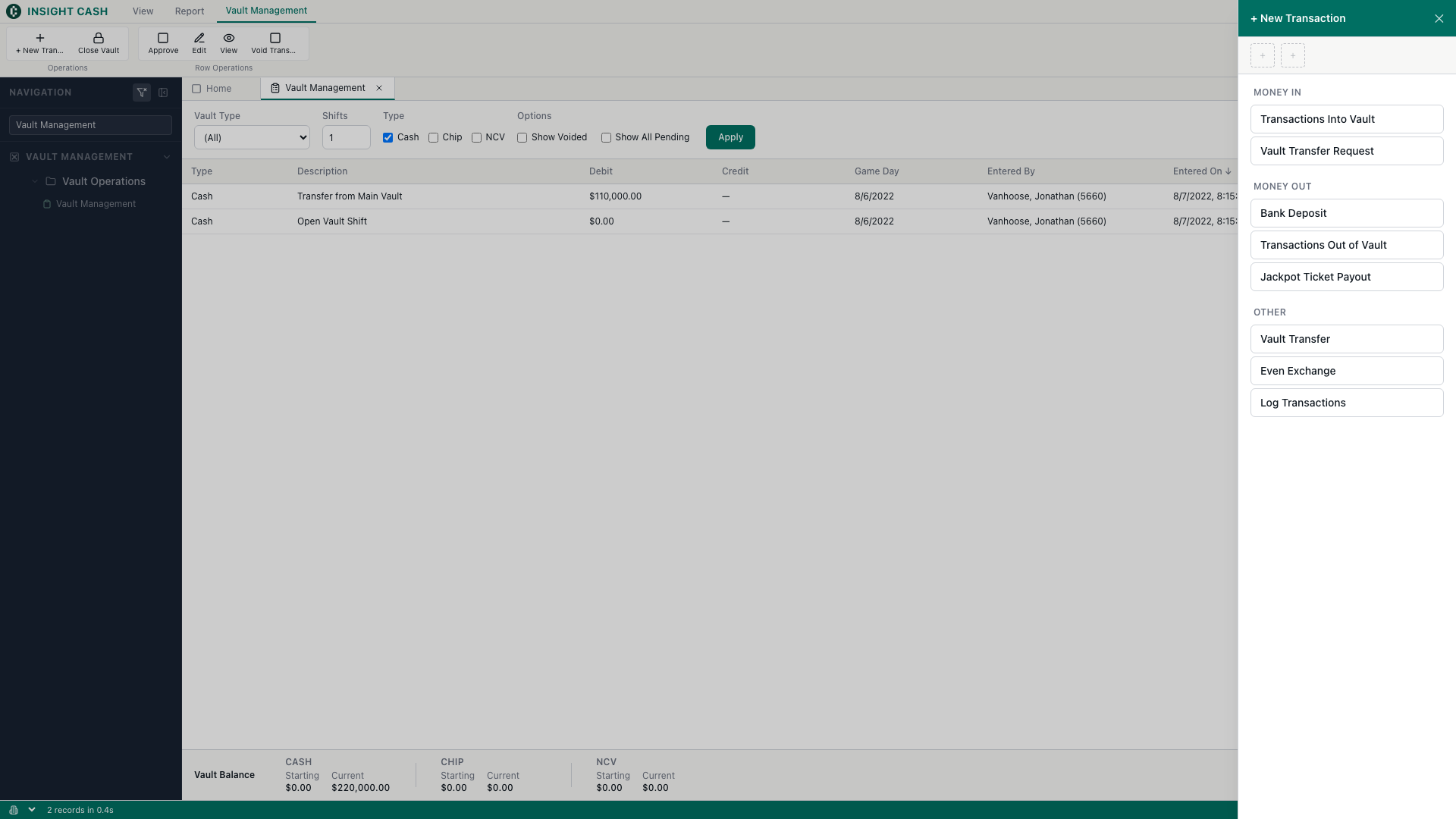

Vault Management

Vault Management → Vault Operations. Shell shipped; command intents still pending.

↺ Click to view 3 screenshots

Main view1 / 3 ESC or click backdrop to close

Configuration and master-data editors. Same architecture as interactive tools, but the workload is admin-side CRUD rather than daily floor operations.

maintenance

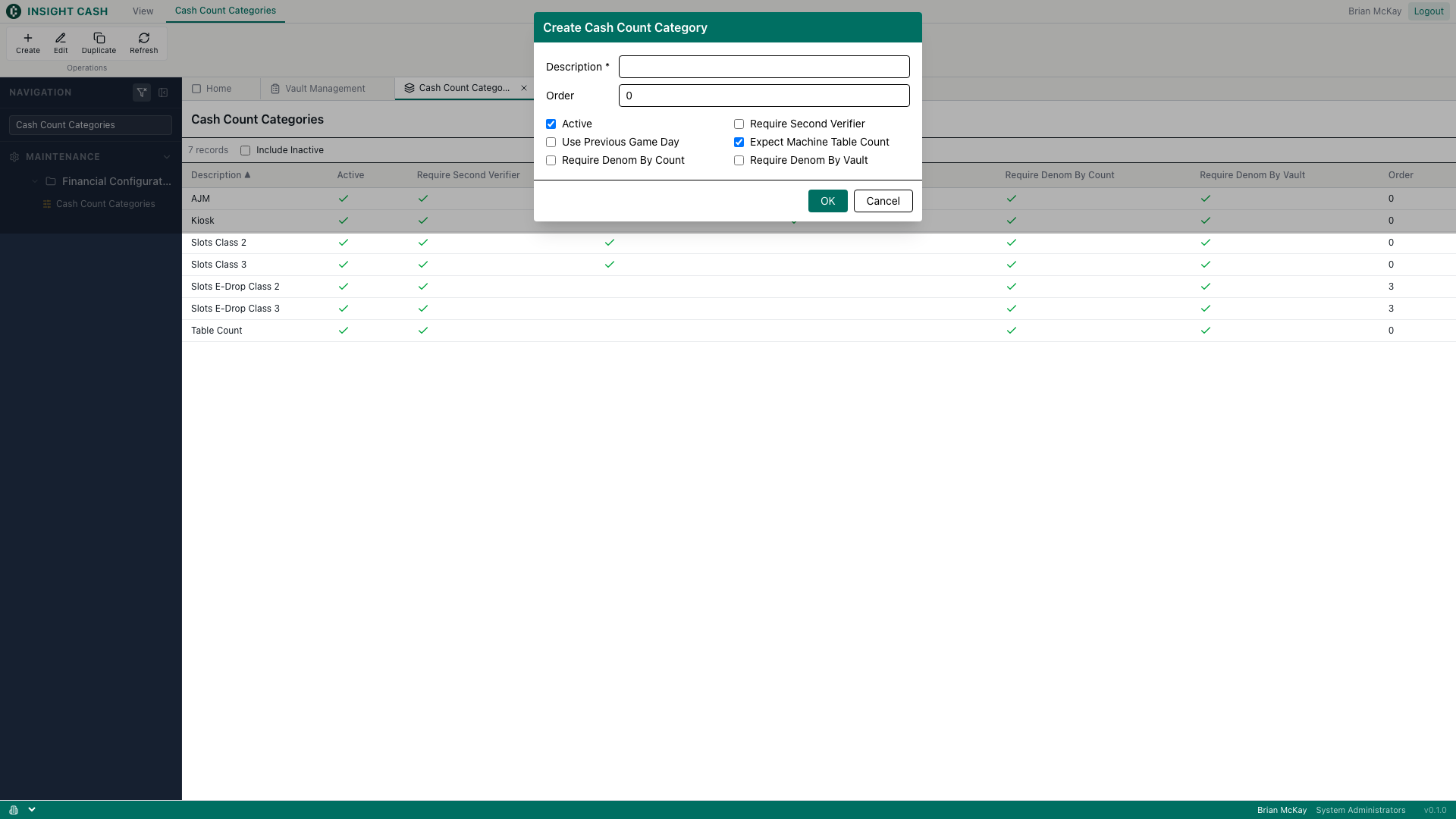

Cash Count Category Maintenance

Maintenance → Financial Configuration. Bill-sorter count category CRUD.

↺ Click to view 3 screenshots

Main view1 / 3 ESC or click backdrop to close

maintenance

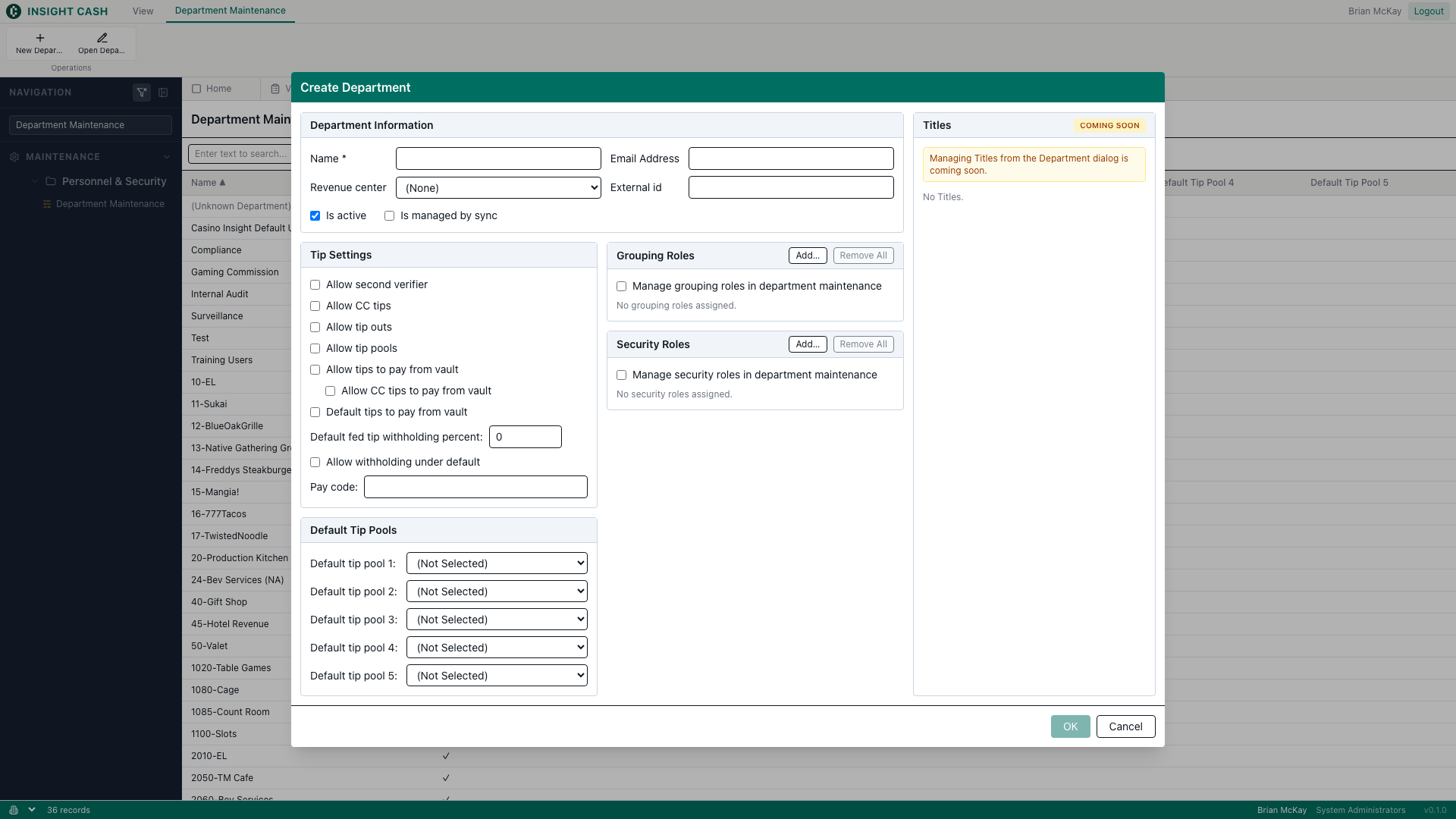

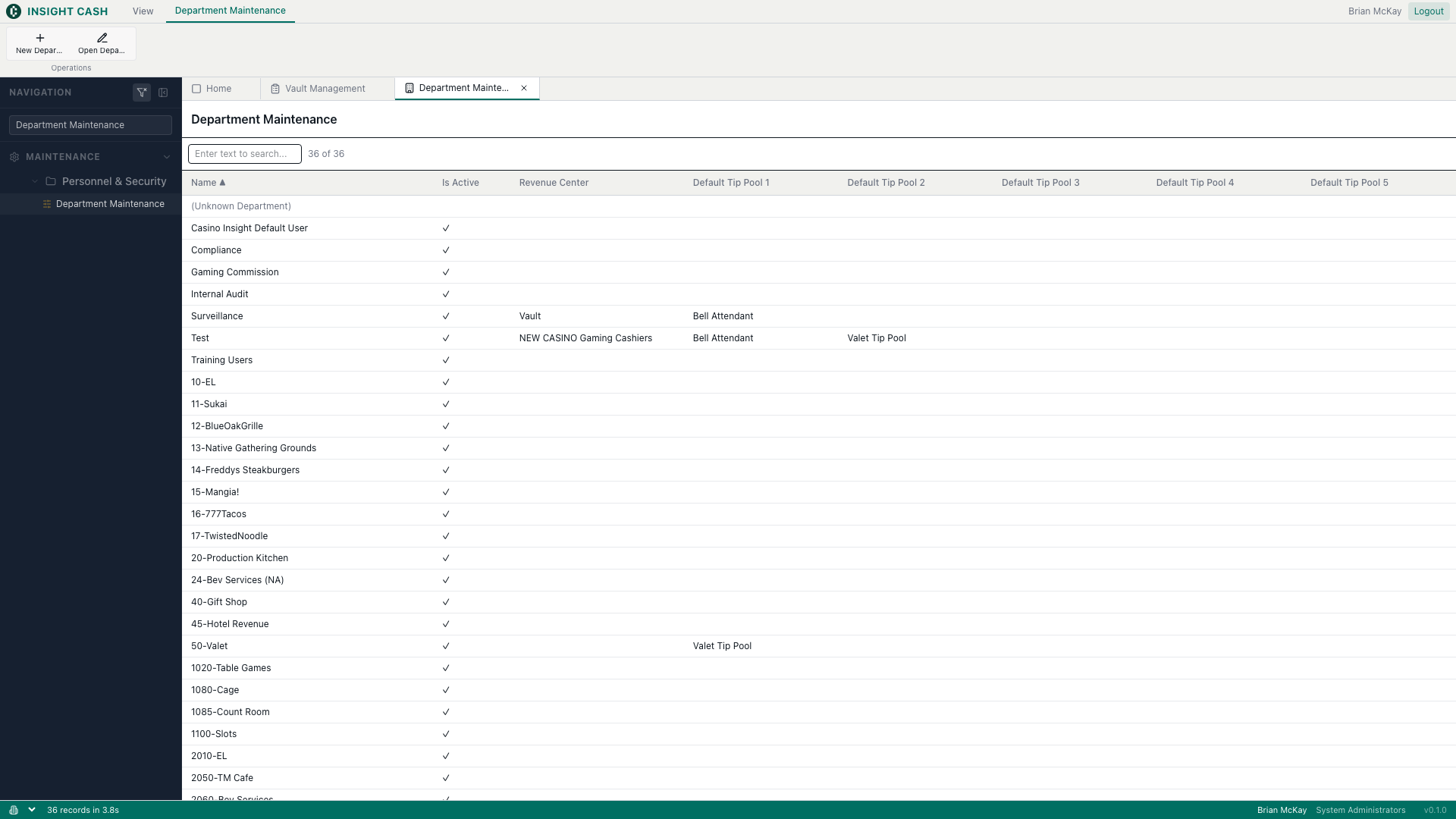

Department Maintenance

Maintenance → Personnel & Security. Department + Title CRUD with role mapping.

↺ Click to view 2 screenshots

Main view1 / 2 ESC or click backdrop to close

maintenance

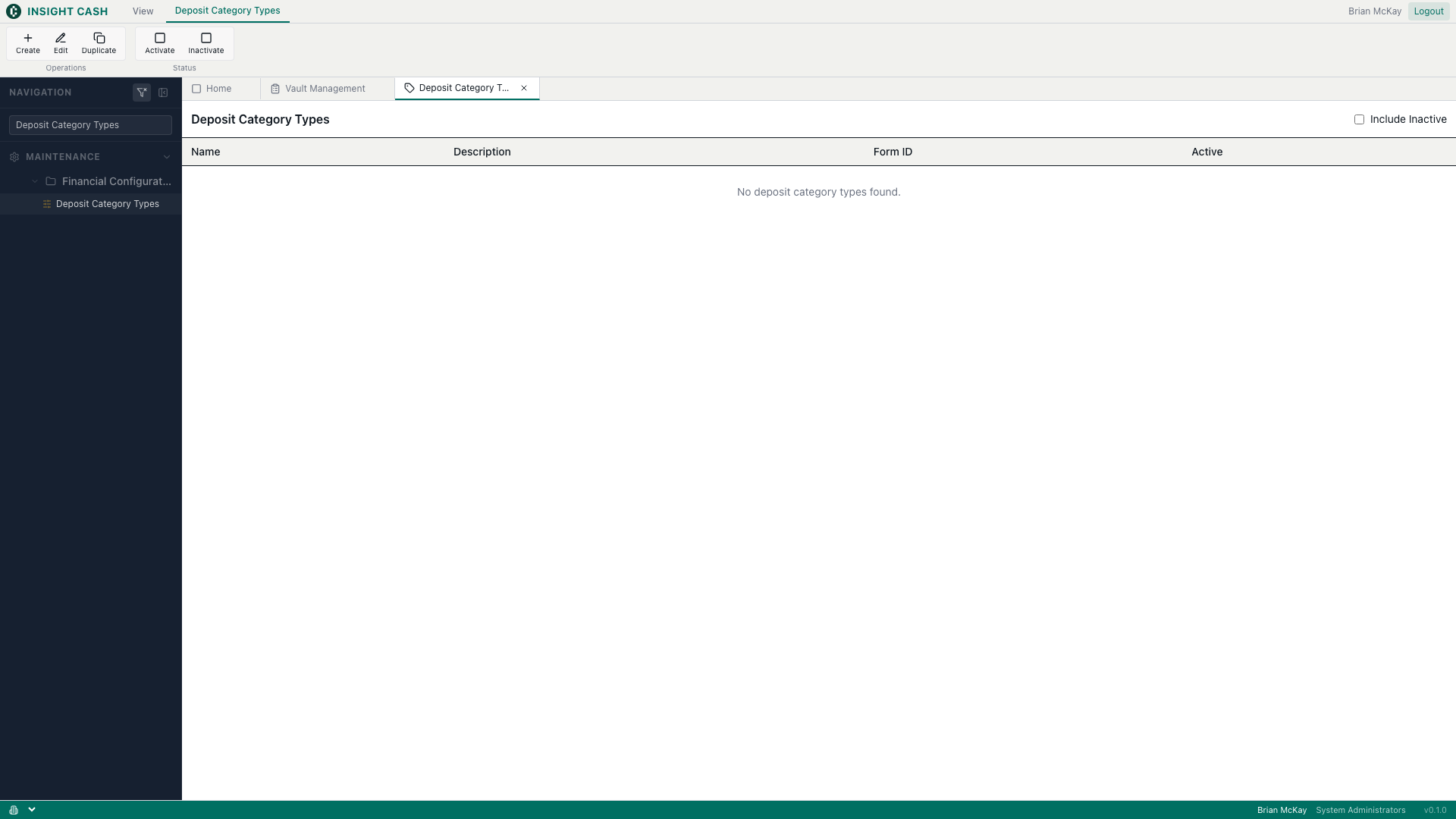

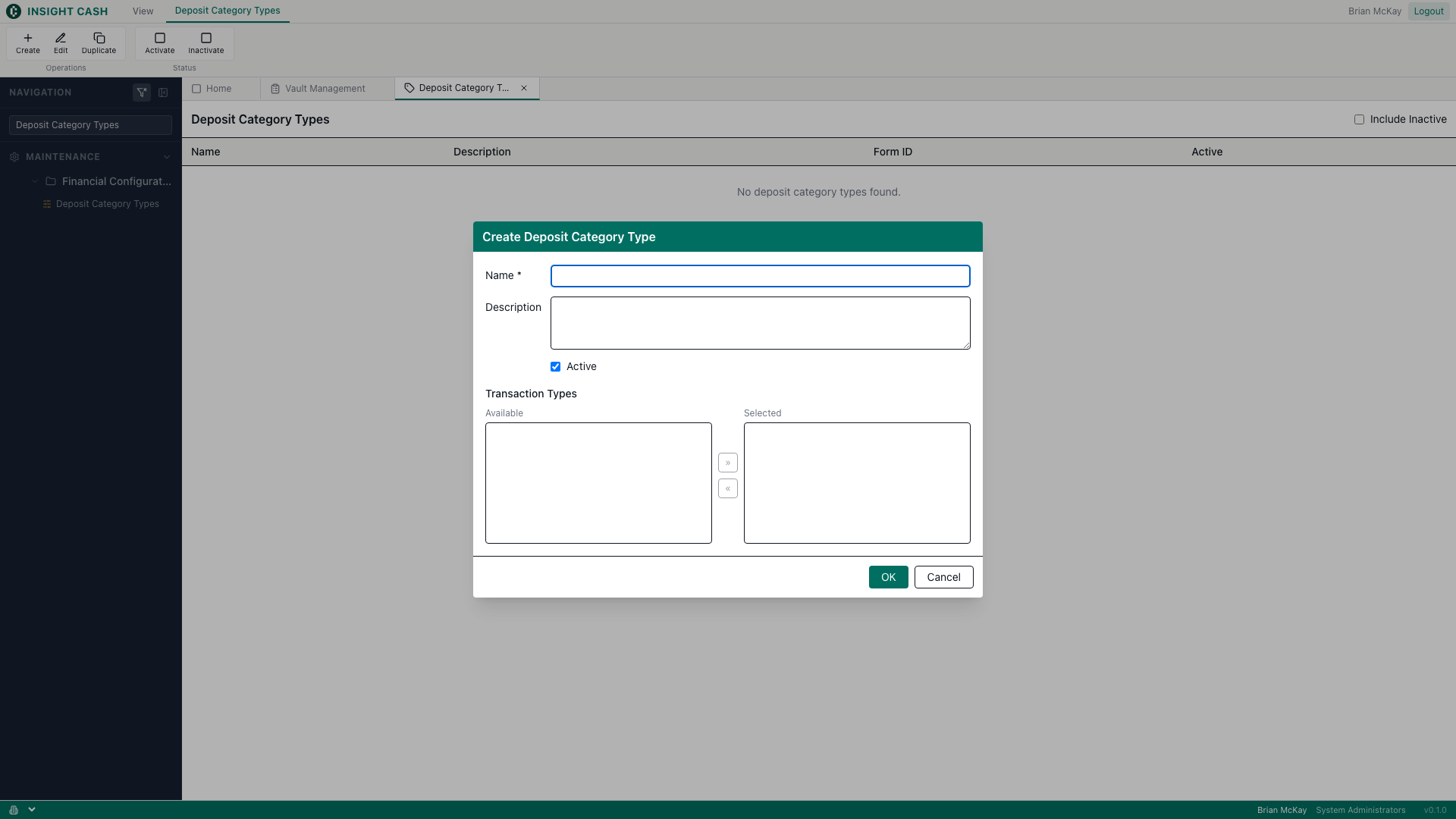

Deposit Category Type Maintenance

Maintenance → Financial Configuration. Category CRUD with dual-list TransactionType assignment.

↺ Click to view 2 screenshots

Main view1 / 2 ESC or click backdrop to close

maintenance

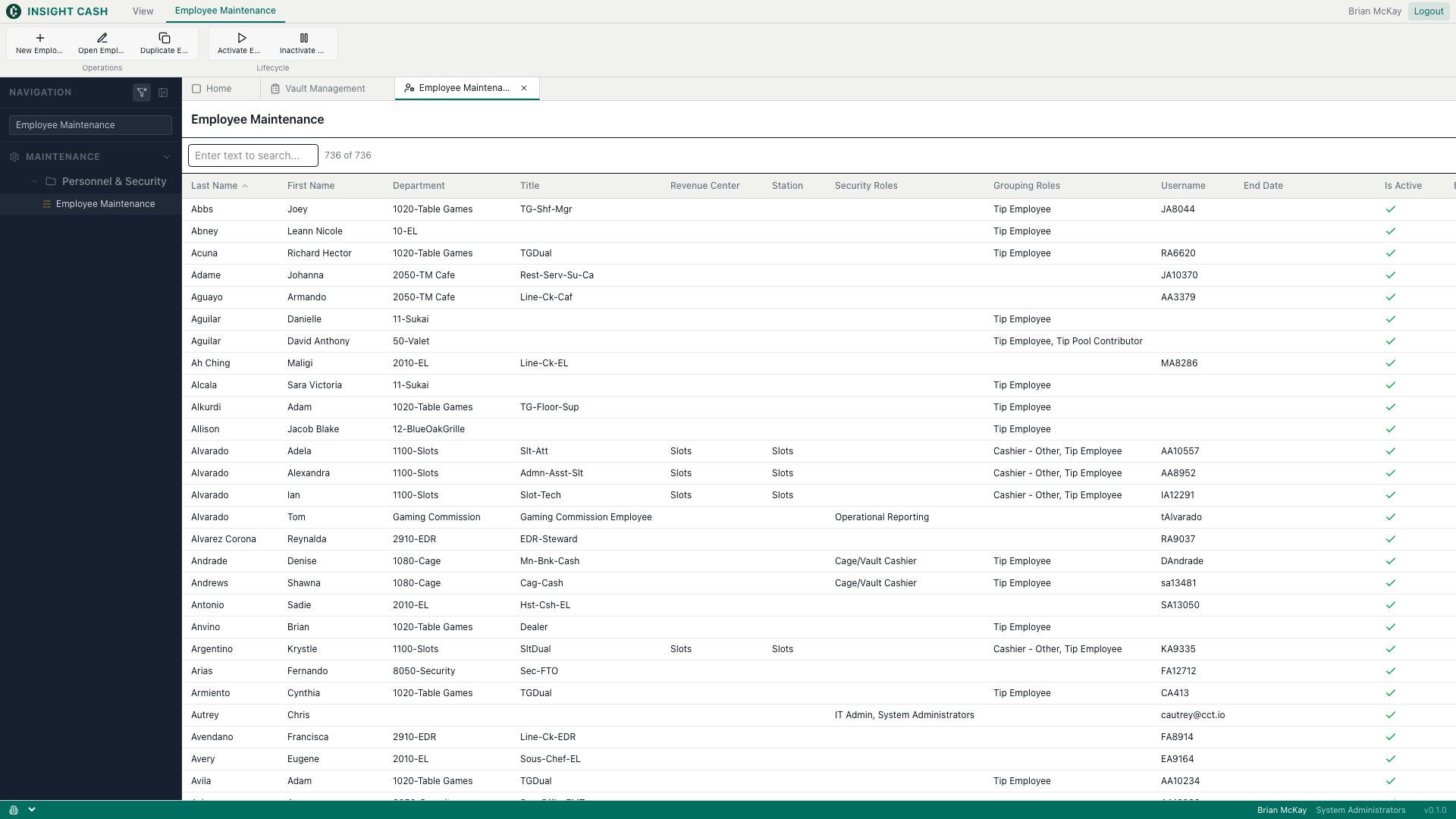

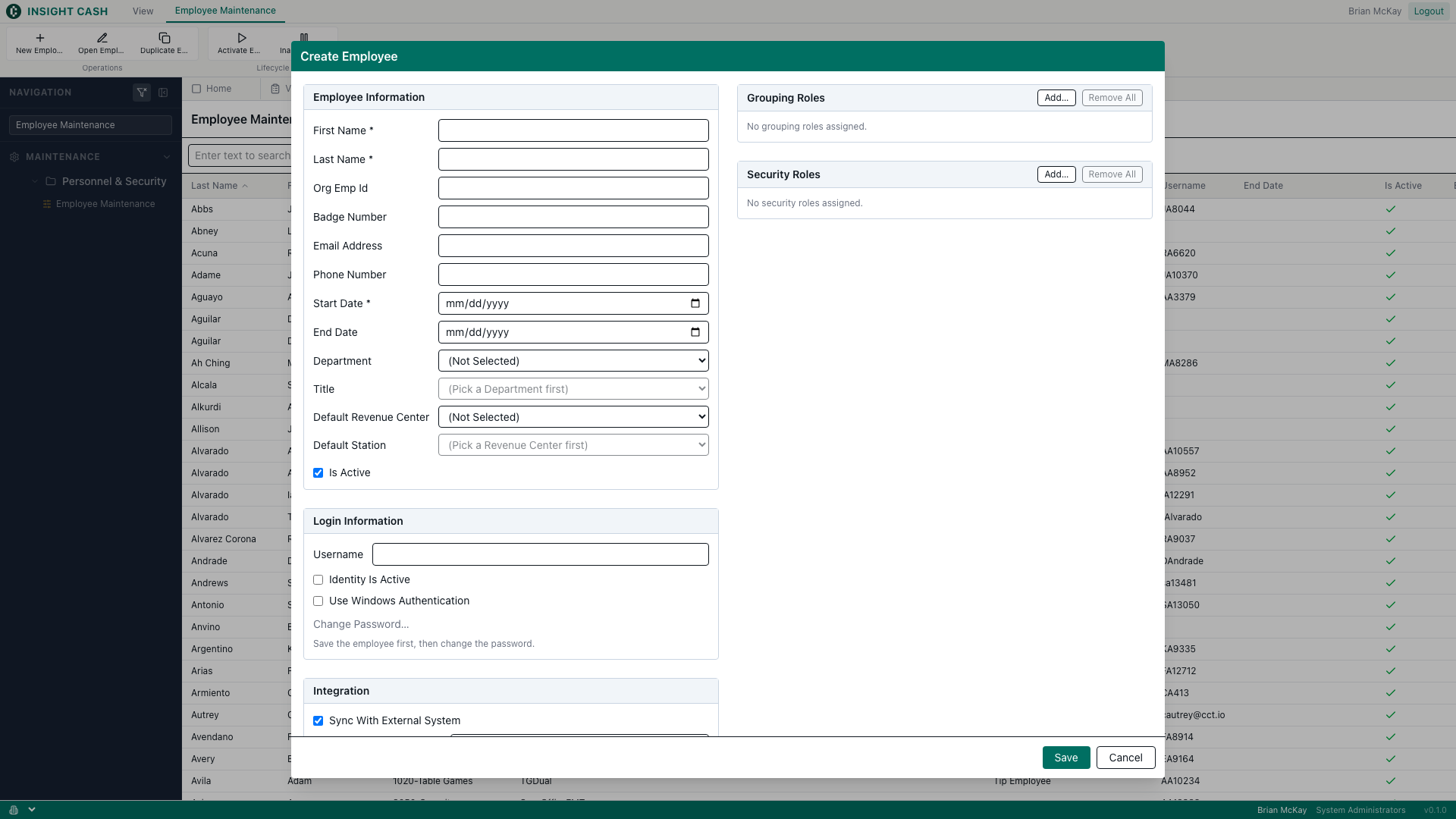

Employee Maintenance

Maintenance → Personnel & Security. Employee + identity + role assignment CRUD.

↺ Click to view 2 screenshots

Main view1 / 2 ESC or click backdrop to close

maintenance

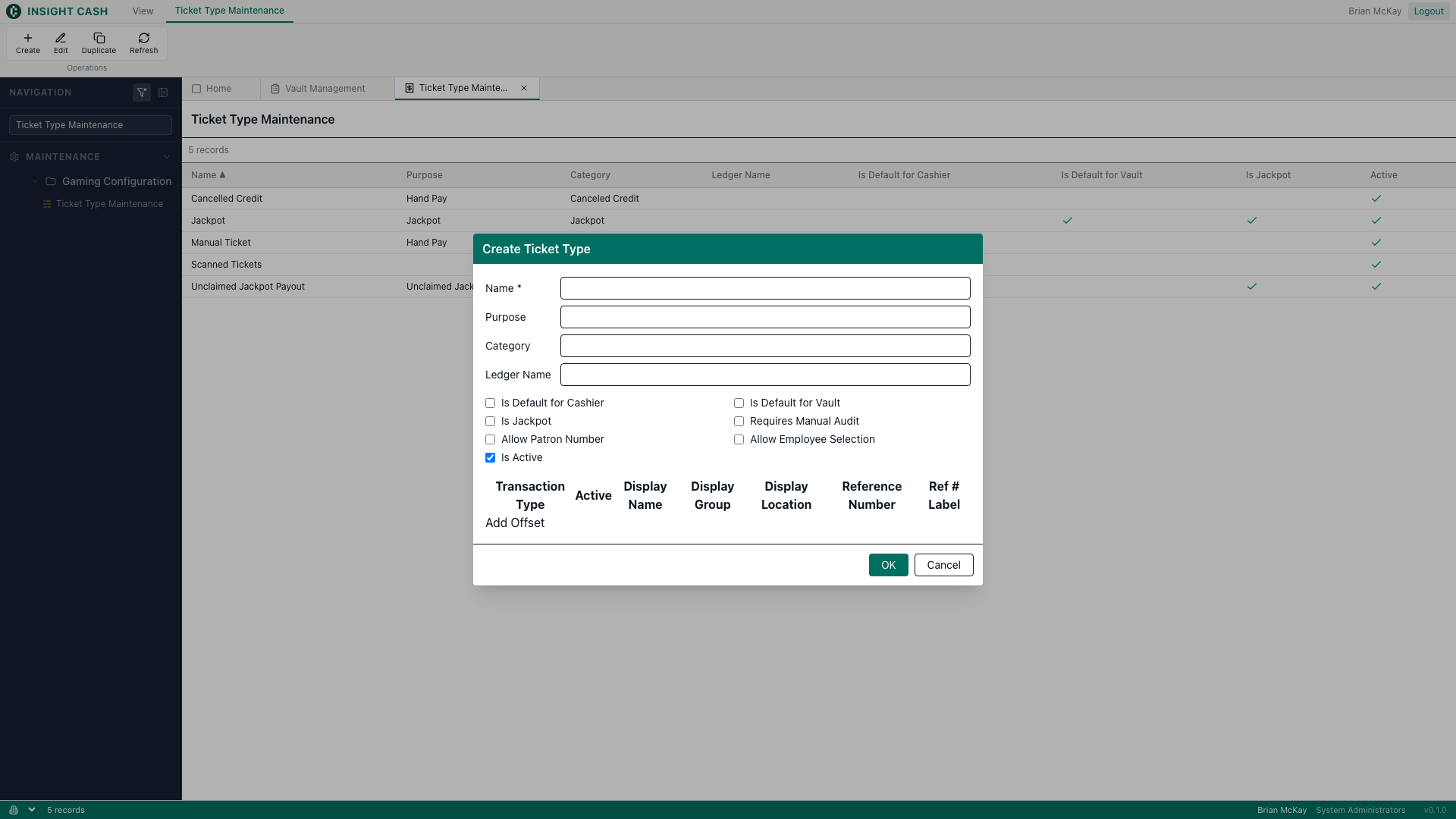

Ticket Type Maintenance

Maintenance → Gaming Configuration. Ticket type header + offsets editor.

↺ Click to view 3 screenshots

Main view1 / 3 ESC or click backdrop to close

maintenance

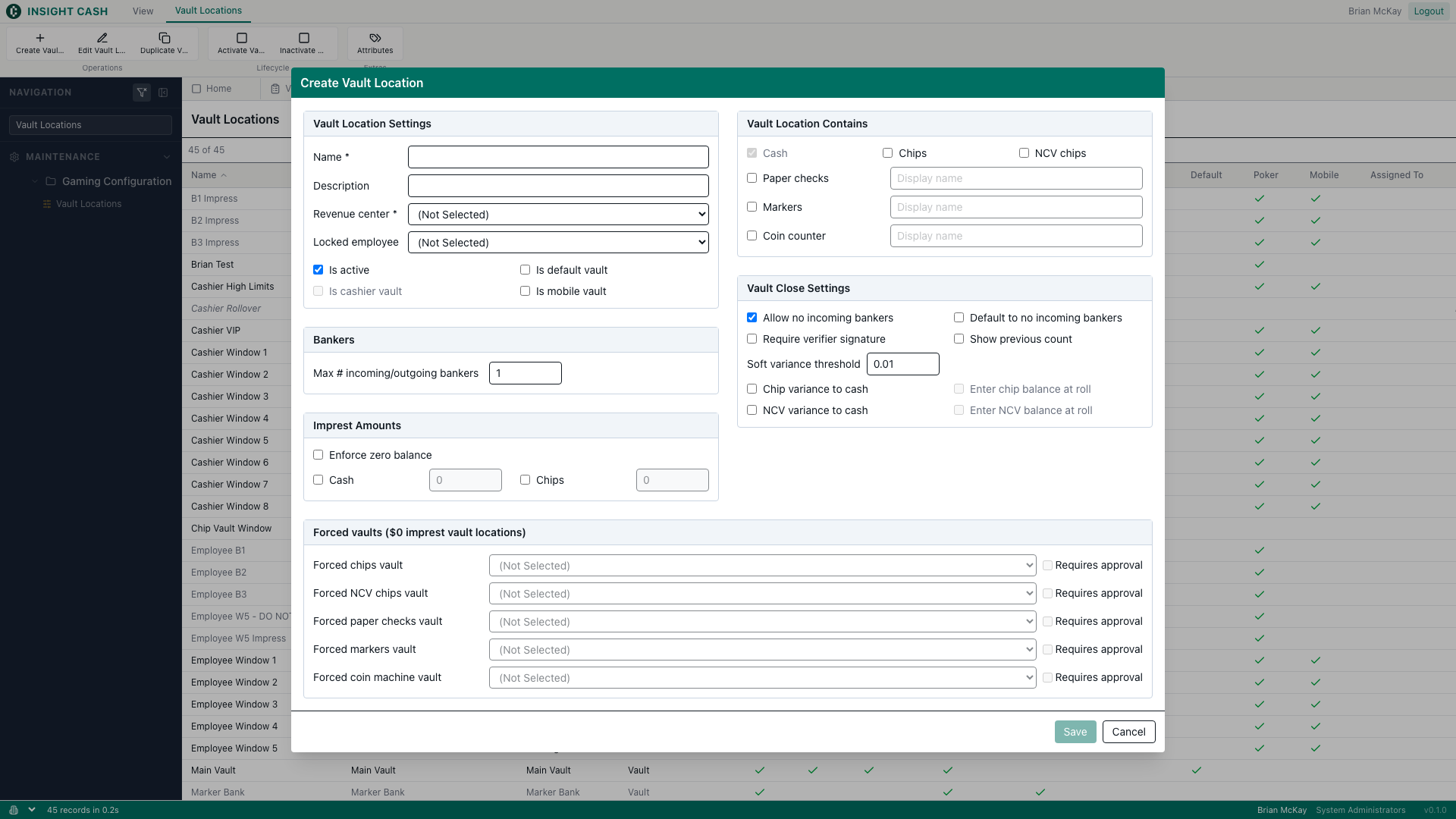

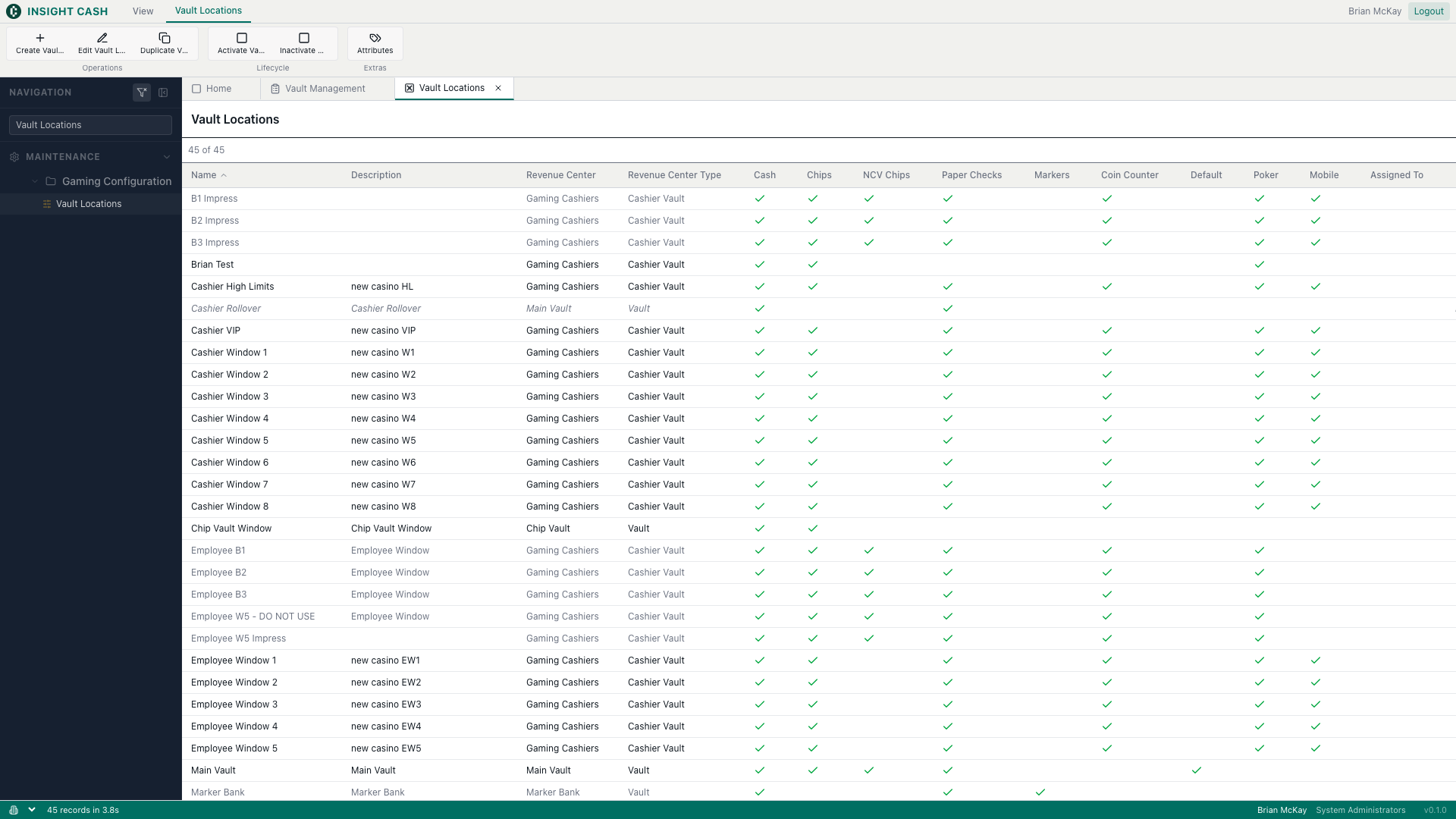

Vault Location Maintenance

Maintenance → Gaming Configuration. Full CRUD over dbo.VaultType.

↺ Click to view 2 screenshots

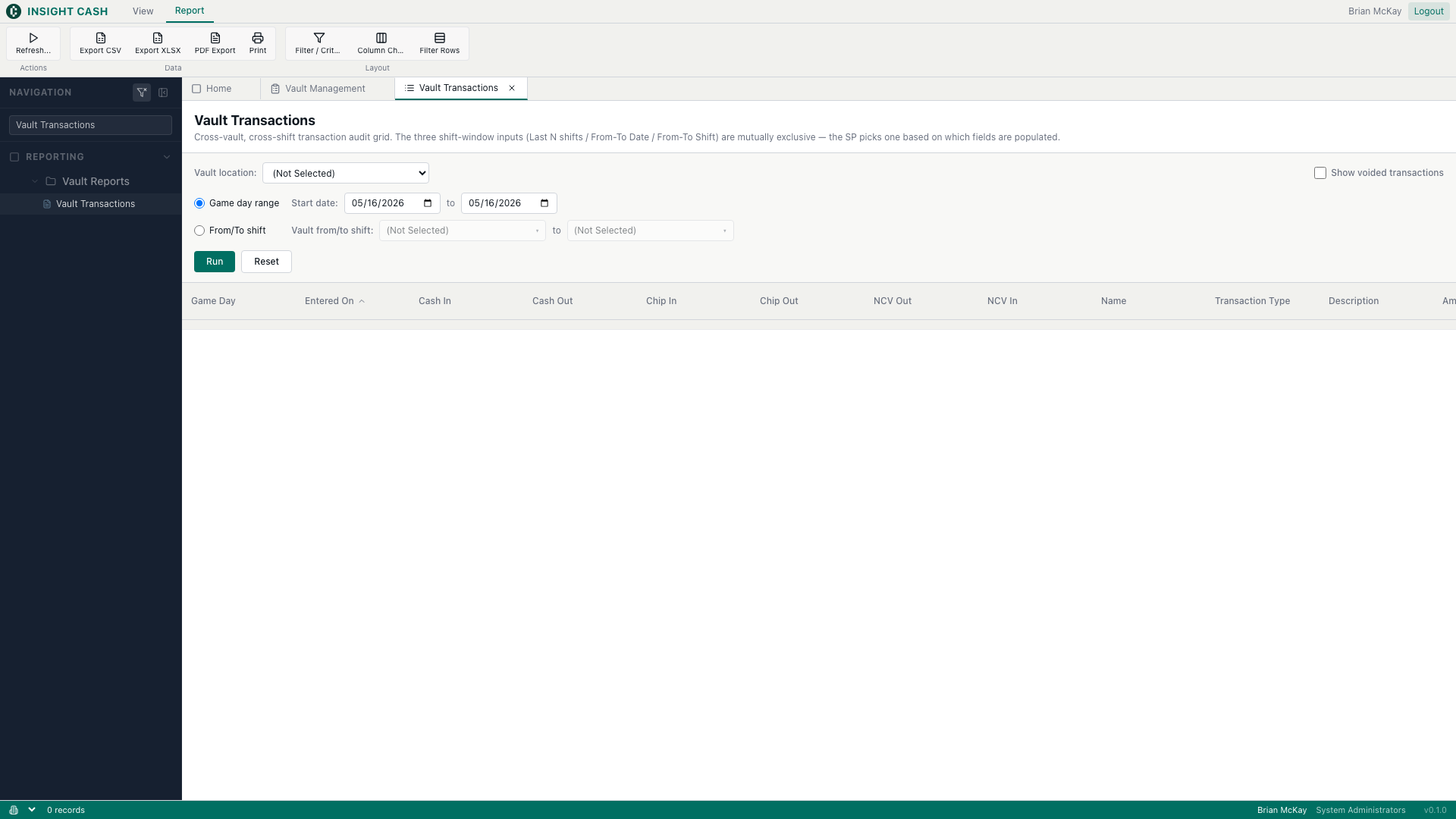

Vault Transactions

Reporting → Vault Reports. Multi-vault, multi-shift transaction grid with money-column totals.

↺ Click to view screenshot

Vault Transactions · click to flip back

Reusable building blocks consumed by multiple tools. Each one is owned by the intent that first shipped it; later intents inherit.

component

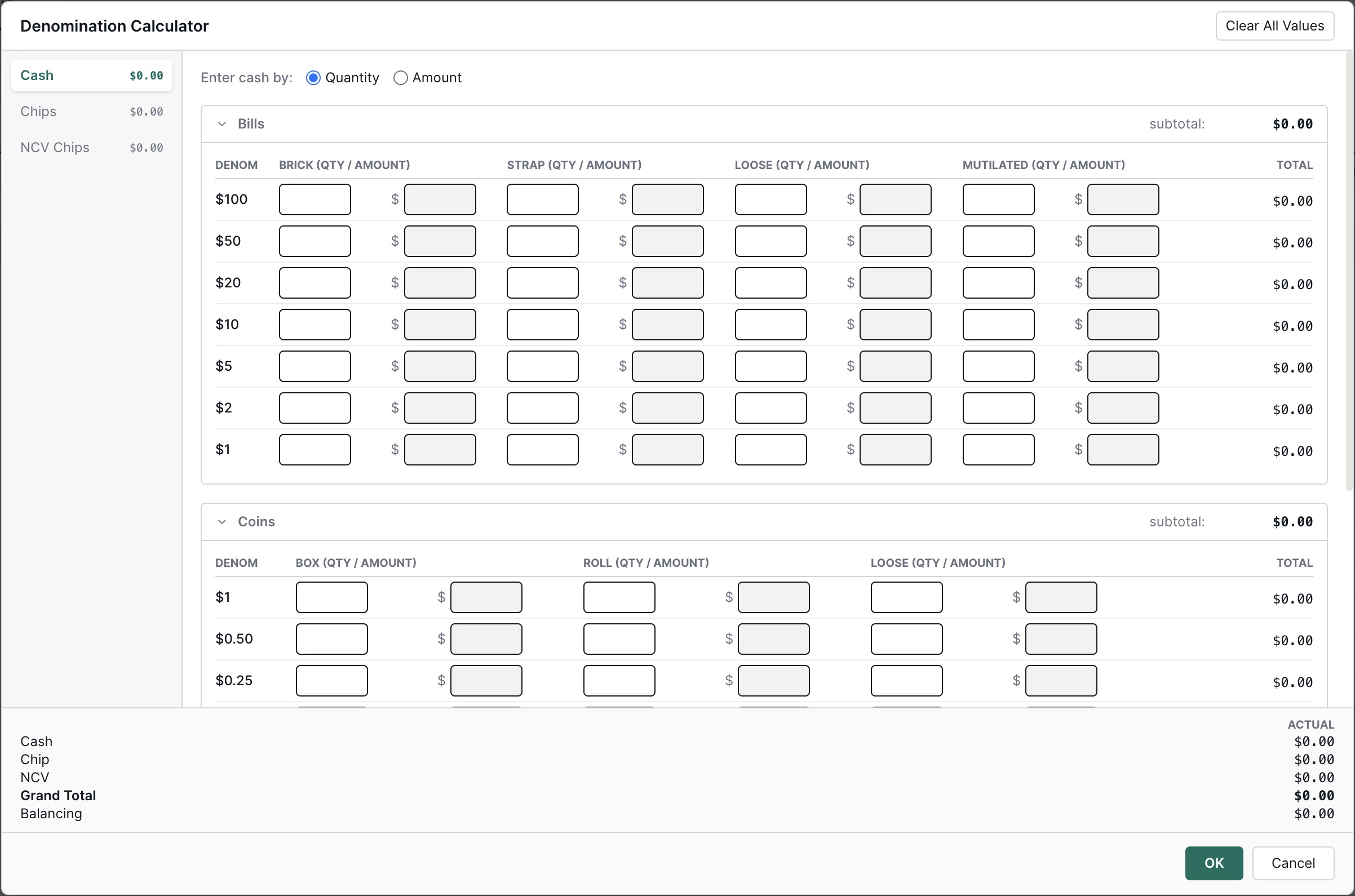

denom calculator

Cash, Chip, NCV Chip, Currency Bag, Premades, and Other Items counters.

↺ Click to view screenshot

denom calculator · click to flip back

component

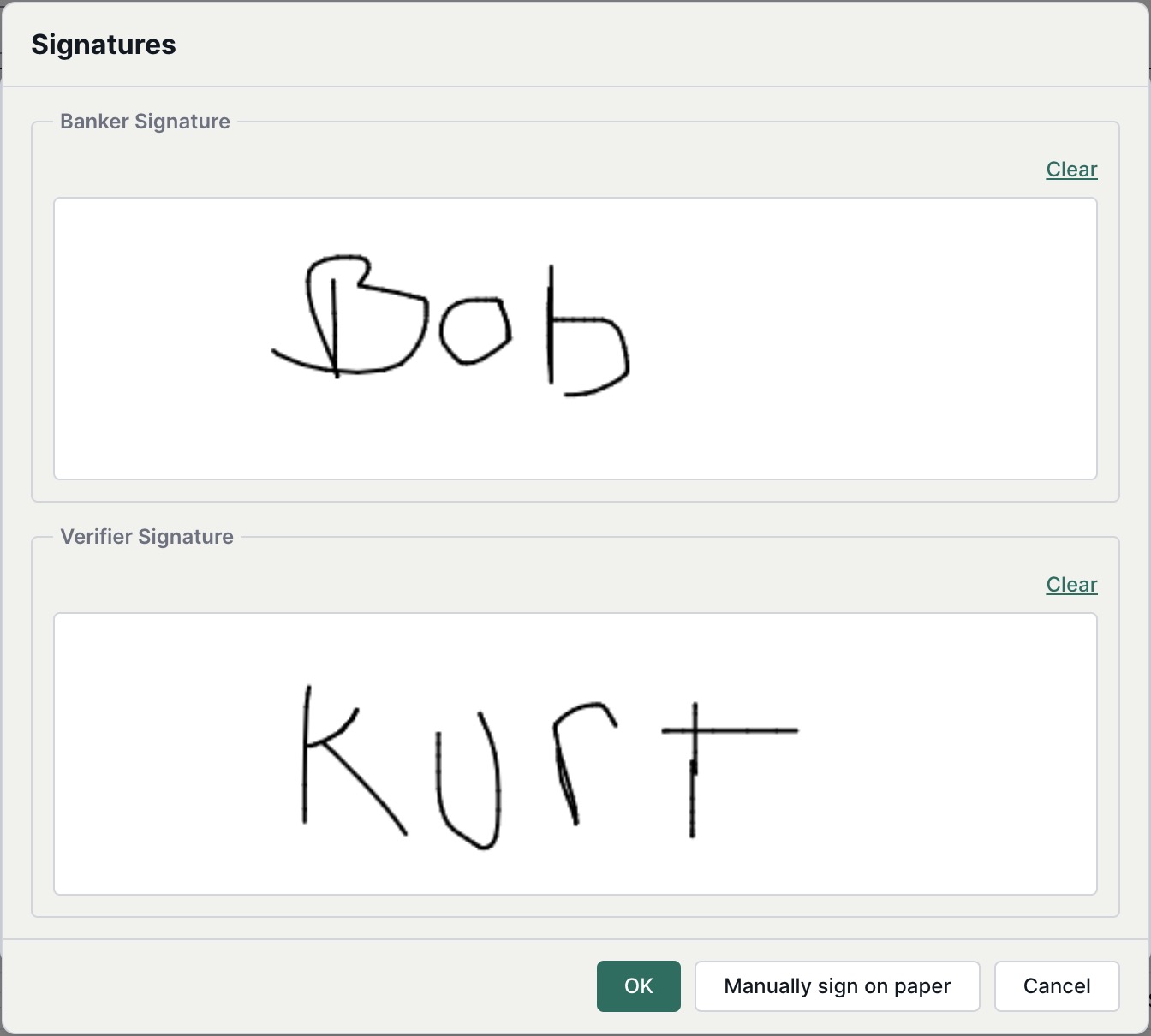

signature

Document signature capture — mouse-only for now; Topaz hardware support deferred.

↺ Click to view screenshot

signature · click to flip back

component

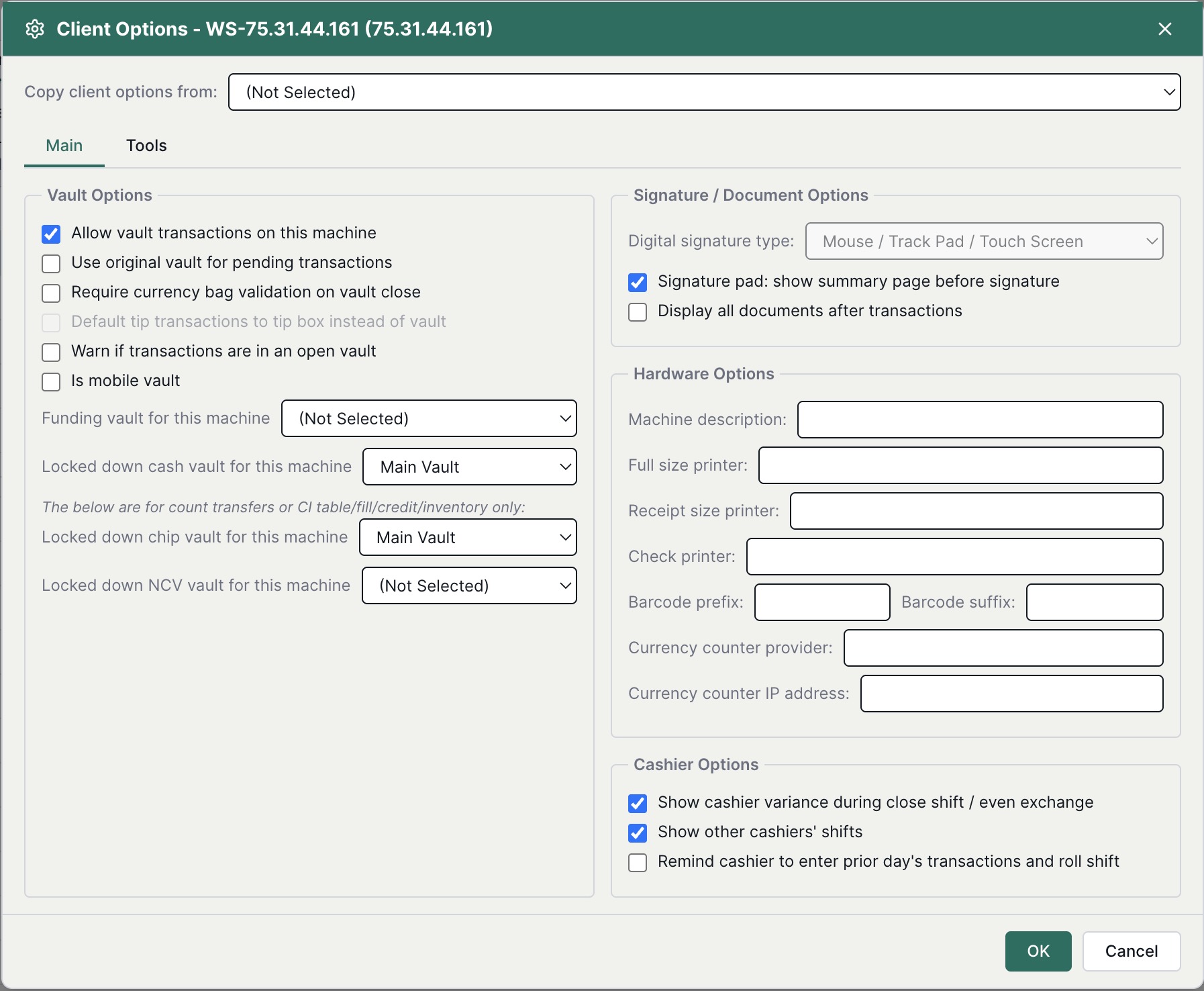

client-options

Workstation client-options editor.

↺ Click to view screenshot

Migration scope

Counts across the entire CasinoInsight v6.1 WinForms feature surface that has to land in the web app, bucketed by type and status. Internal diagnostic tools, deprecated modules, and analytics / data-warehouse features are excluded.

Architecture

6 / 29 · 20.7%

23 left

Tool

1 / 22 · 4.5%

21 left

Report

8 / 155 · 5.2%

147 left

Misc.

8 / 80 · 10.0%

72 left

Total

23 / 286 · 8.0%

263 left

Note — every screenshot in this section is captured automatically by a Playwright script and synced to S3 on each deploy. No hand-pasted images, no stale UI in the deck.

Section 3

Test surface

Every test file in the repo, bucketed by type (rows) and area (columns). Counts are cases per file. Contract files are type-level assertions and count as one case each.

Type	Frontend	Handlers	CLI	Cross-cutting	Total
Unit	483	871	388	6	1,748
Integration	–	–	22	–	22
Contract	–	–	–	14	14
Smoke	–	–	5	12	17
E2E	–	–	–	669	669
Total	483	871	415	701	2,470

Runner breakdown

Playwright

681 cases · 47 files

Real browser, real Cognito, real API.

Vitest

1,775 cases · 340 files

Fast, in-process, mocked or child-process.

Unit

Fast and in-process

Mocked dependencies. The bulk of the surface. Vitest.

Integration

CLI ↔ handler

CLI commands running against handler logic with mocked AWS / DB. Vitest.

Contract

Type-level assertions

app/contracts/*.contract.ts keeps handler responses, CLI requests, and shared schemas aligned.

Smoke

Post-deploy probes

SPA smoke (Playwright) and CLI smoke (Vitest spawning the compiled cct CLI).

E2E

Full stack

Playwright against a real browser, real Cognito, and the real API.

Note — Claude doesn't just write the code and the tests — it also drafts the user-facing documentation and the publicly accessible technical guides that ship alongside each tool, kept in lockstep with the implementation.

Section 4

CCT CLI surface

The cct CLI is the agent-facing surface of Insight Cash. Every interactive tool, maintenance editor, and report is reachable from the terminal using the same business logic, auth, idempotency, and audit guarantees as the SPA.

Designed for AI agents first. Claude — or any MCP-aware automation — can authenticate, run a shift close, reconcile a currency bag, export a report, and verify the result programmatically, without a browser, a screen, or a human in the loop, and leaving the same RBAC + audit trail an operator would. Stable command names, machine-readable JSON output, deterministic exit codes, and per-write idempotency keys are what make Insight Cash agentically operable — Claude doesn't need a UI to do the job, it needs a contract, and the CLI is that contract.

Humans get the same surface as a side effect — ops engineers wire cct health into CI gates, power users script bulk operations, anyone who'd rather type than click.

The CLI ships 18 topics and 67 commands.

Same business logic, different surface — load a currency bag

Both paths hit the same handler, the same SP, the same RBAC, and leave the same audit trail. Only the surface differs.

Human via Website

Open the SPA in a browser, sign in via Cognito hosted UI
Navigate to Currency Bag Management
Click Load New Bag
Pick denomination, vault, deposit category from dropdowns
Enter amount, seal number, description
Capture banker signature on the signature pad
Click Save, confirm the dialog
Read the success toast; new bag appears in the grid

AI agent via the CLI

Authenticate with a scoped API key
Run currency-bag load with the bag fields inline
Parse JSON response, branch on exit code

cct login --api-key=$IC_KEY
cct currency-bag load \
  --denomination USD100 \
  --vault-type-id 11111111-...-...-...-111111111111 \
  --amount 1000 \
  --description 'Night audit bag' \
  --signature banker=./banker.png \
  --json

Command Library

TW Tools (write surfaces)

Currency Bag, Machine Count, Table Count — full lifecycle commands.

list · create · edit · void · approve · unload · history · export

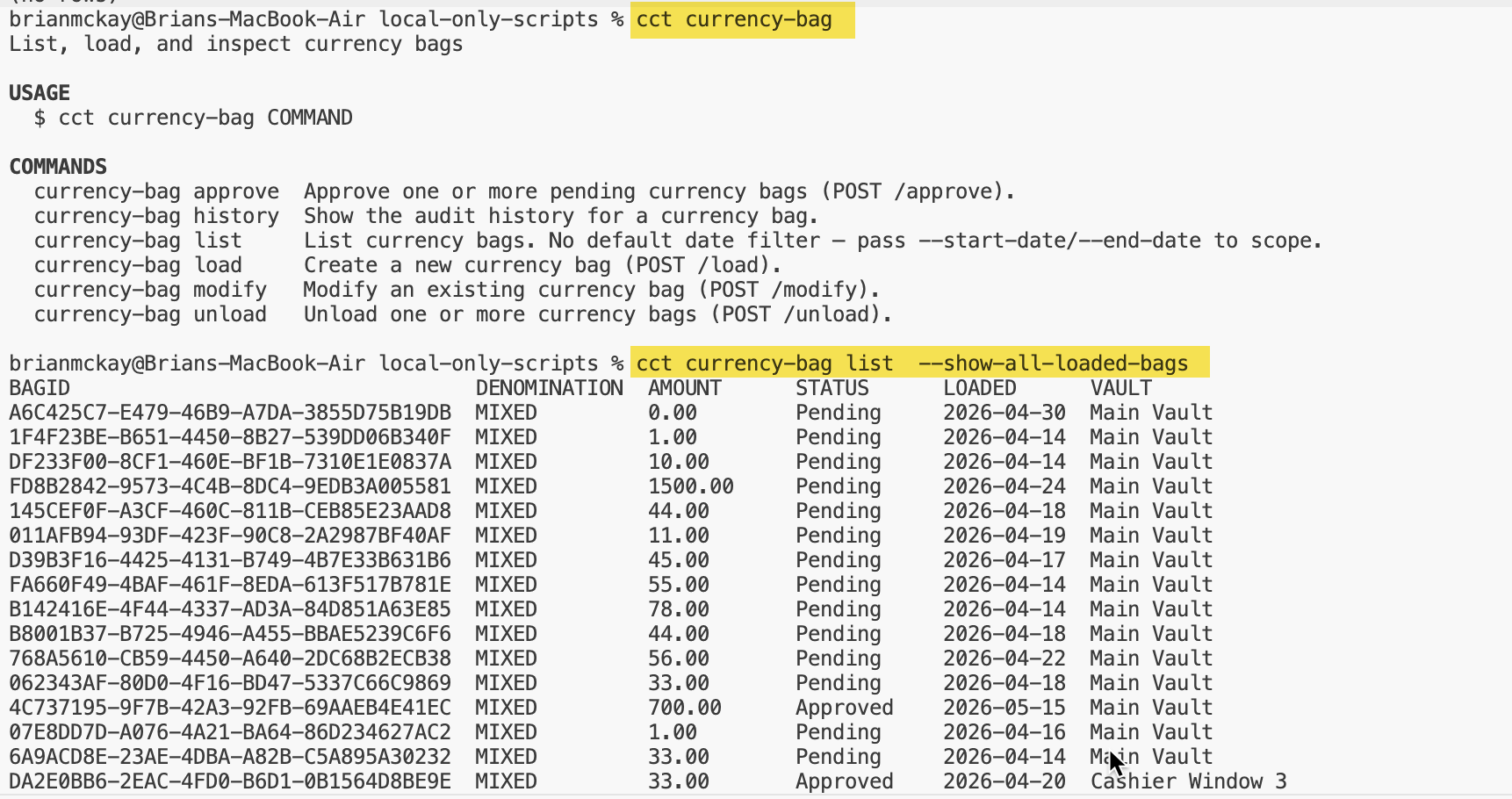

↺ Click to view currency-bag screenshot

cct currency-bag · click to flip back

MT Maintenance

Department (incl. Title sub-topic), Vault Location, Employee, Ticket Type, Cash Count Category, Deposit Category Type, Client Options.

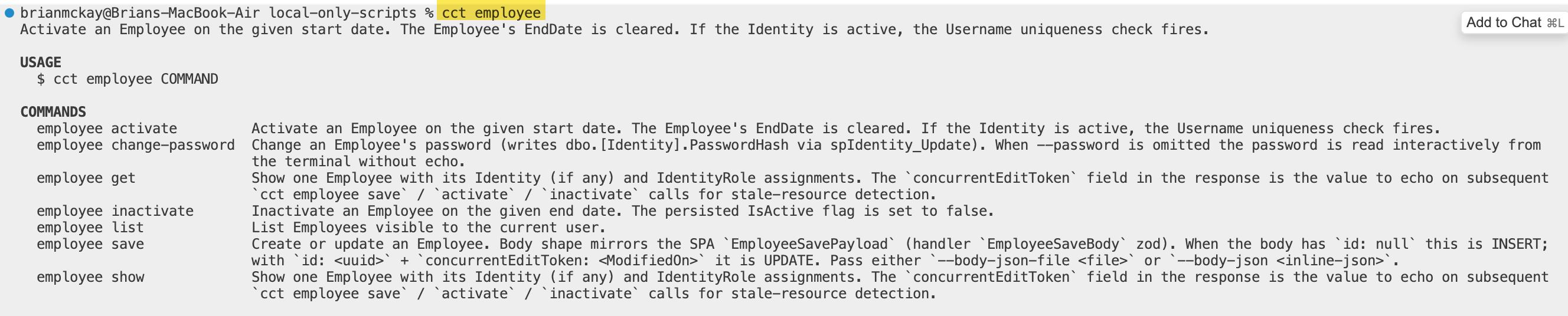

↺ Click to view employee screenshot

cct employee · click to flip back

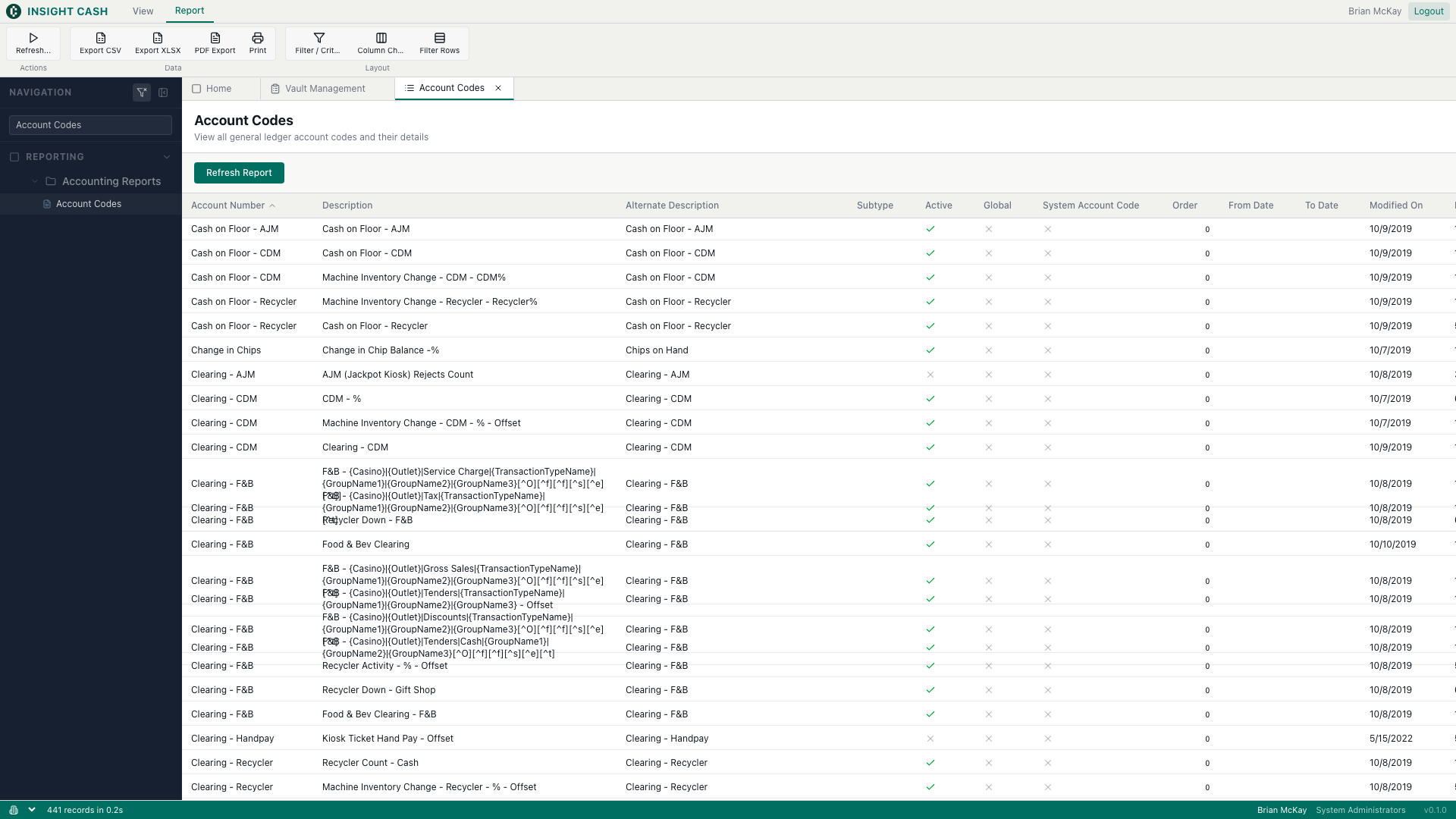

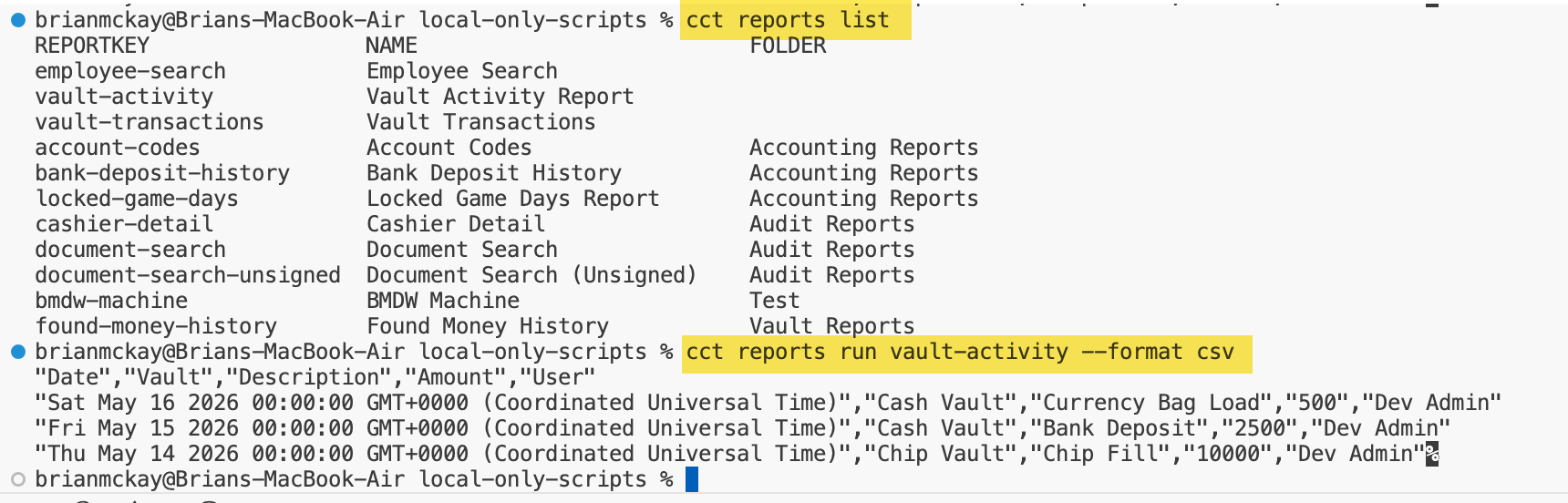

RE Reports (generic engine)

One command set covers all 11 deployed reports.

reports list · describe · run · export · history

↺ Click to view reports screenshot

cct reports list & run · click to flip back

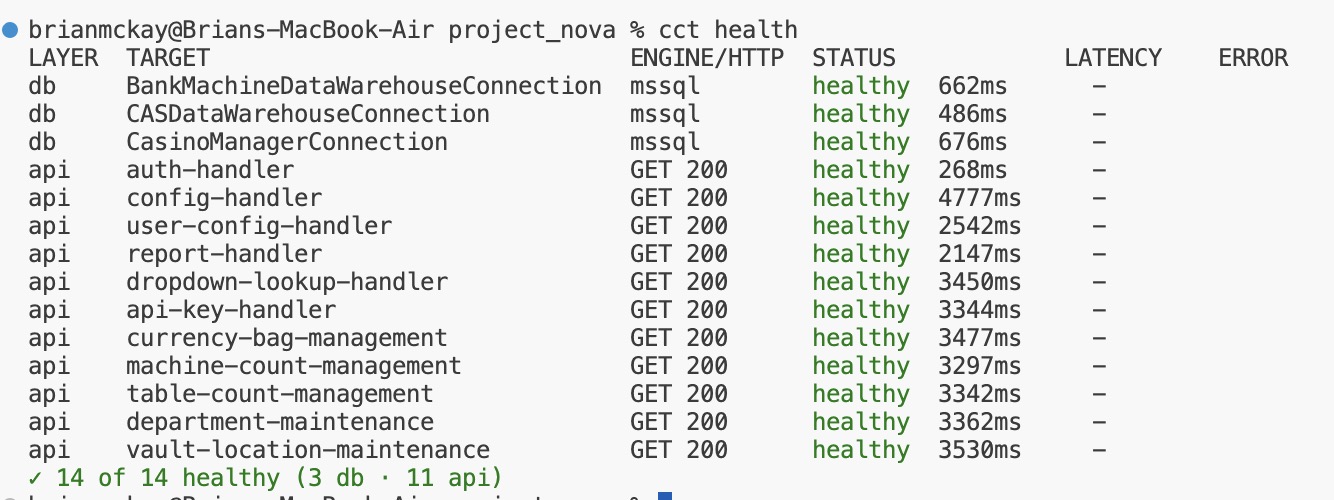

AH Auth, Audit, Health, Infrastructure

Operator-side observability and an escape hatch for ad-hoc API calls.

auth keys · auth logins · connections list · health · api

↺ Click to view health screenshot

cct health · click to flip back

SI Session & Identity

Sign-in, profile + site switching, identity introspection.

login · logout · whoami · version · config · sites

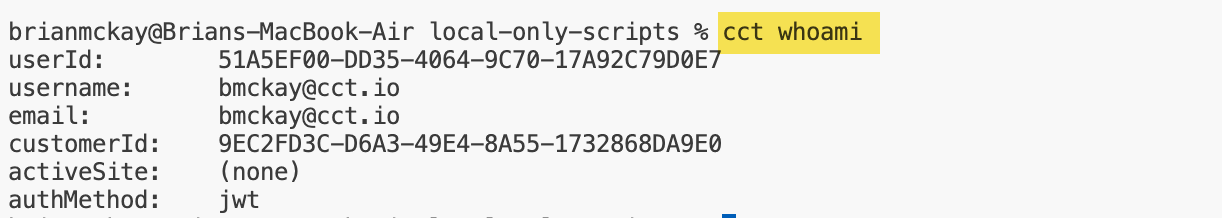

↺ Click to view whoami screenshot

cct whoami · click to flip back

Section 5

Tools & services

A deliberately minimal toolchain. Four external services, every one of them accessible by both humans and AI agents through standard protocols.

Source Control

GitHub

All migration work flows through branched intents, per-bolt sub-branches, and PR-gated review checkpoints aligned to the AI-DLC method.

Communication · MCP

Slack

Team communication, accessible to Claude through the official Model Context Protocol server. Project channels are first-class context for AI agents.

Knowledge · MCP

Notion

Exported project-related information — specs, decision logs, archived context — accessible to Claude through the official MCP server.

Code Quality · MCP

SonarQube Cloud

Static analysis and quality gate for AI-authored code. Claude runs guide-and-verify scans on every bolt before commit — CRITICAL and HIGH issues never reach a PR.

Why limit the tooling?

The deliberately small surface area is the point. Fewer tools means three concrete wins.

Easier context for Claude

AI agents read source-of-truth content from a handful of well-defined services instead of fishing across a sprawling SaaS estate.

Easier workflow changes

When the team adjusts the migration process, changes are concentrated in this repo plus four external services — not scattered across a dozen integrations.

Lower coordination cost

Every team member, and every agent, knows where to look for any piece of information.

Section 6

Codebase statistics

Overall footprint of the Insight Cash repository as of 2026-05-16 — code, documentation, and the skills we built to drive it all.

7,019

Application Code files

705k

Application Code lines

768

Markdown files

315k

Markdown lines

Skills developed

The World of Markdown

Excludes node_modules, test-results, dist, build, .next, coverage, out, temp, .terraform.

context/

278 / 194,608

aidlc/

245 / 84,759

architecture/

49 / 13,819

app/

142 / 9,817

.claude/

42 / 9,369

other/

6 / 477

TOTAL

768 / 314,677

Application Code

app/	6,908 files · 694,550 lines
database_changes/	111 files · 11,061 lines
Combined total	7,019 files · 705,611 lines
